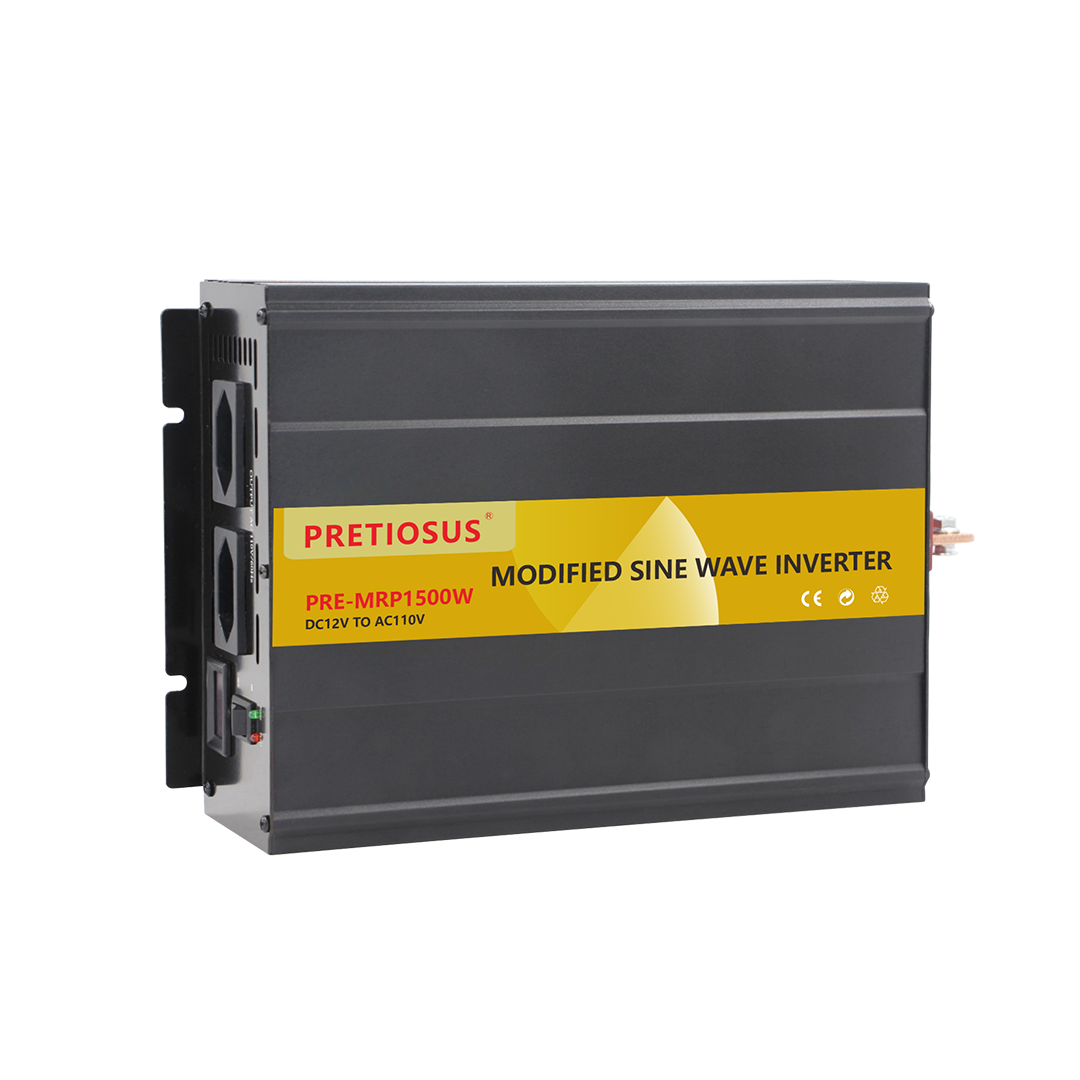

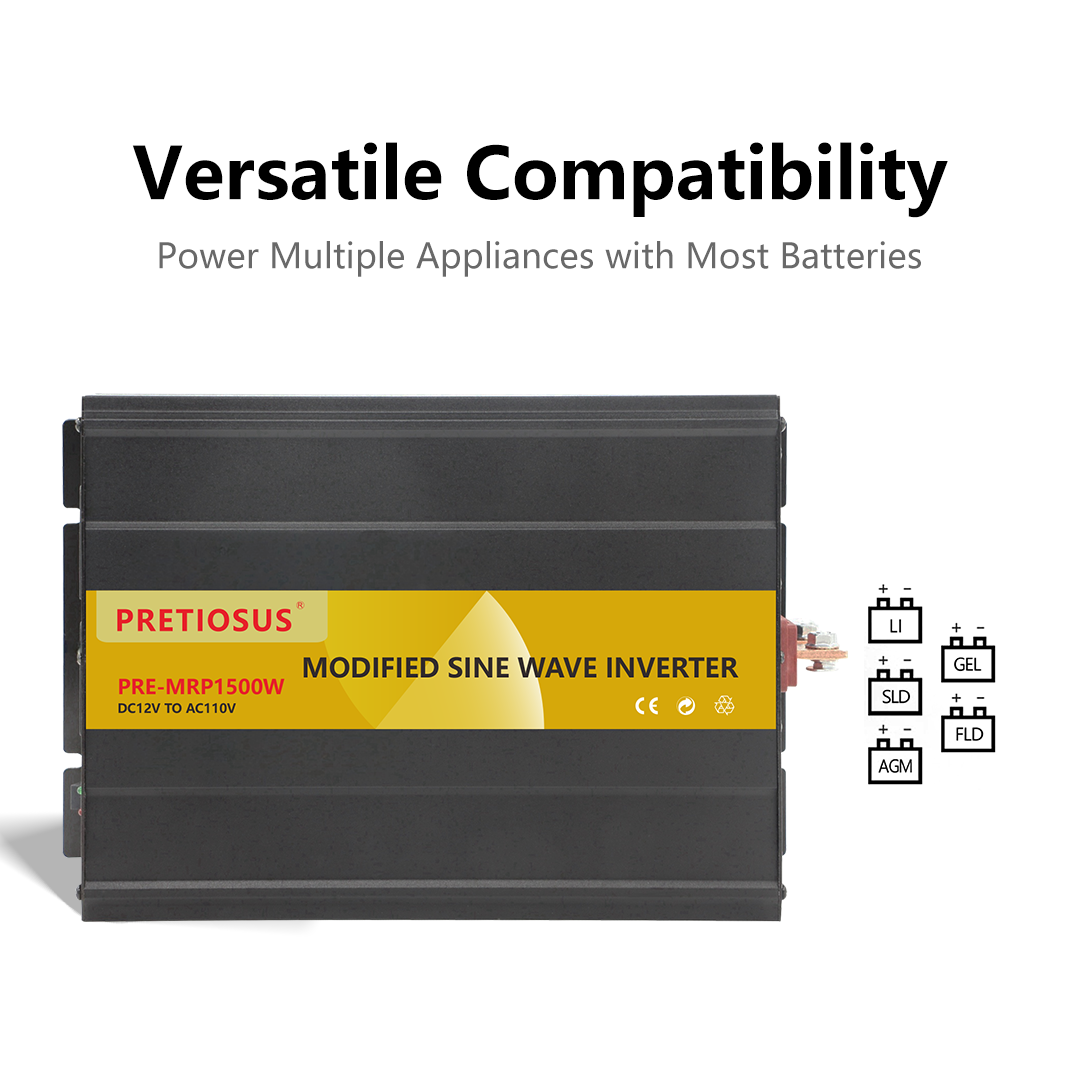

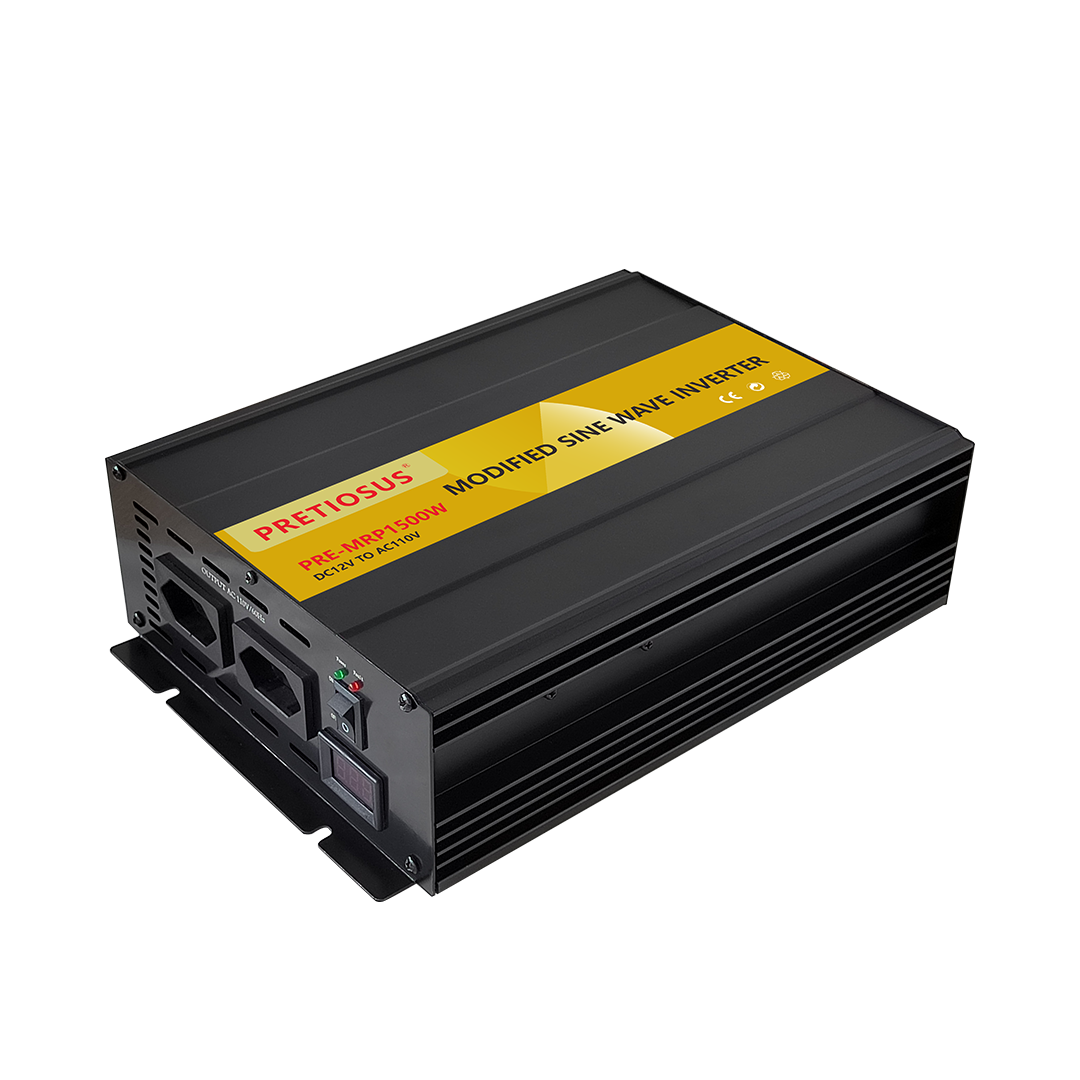

PRE-MRP1500W DC12V TO AC110V 60Hz
Detailed Product Parameters
|
Model |
PRE-MRP1500W |
| Place of Origin | Zhejiang, China |
|
Rated power |
1500W |
|
Peak power |
3000W |
|
Input voltage(Range) |
DC12/24/48/60/72V |
|
Output voltage(Single) |
AC110/120/220/230V |
|
Output frequency |
50Hz or 60Hz |
|
Output waveform |
Modified Sine Wave |
|
Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland etc. |
|
Max.output efficiency |
≥85% |
|

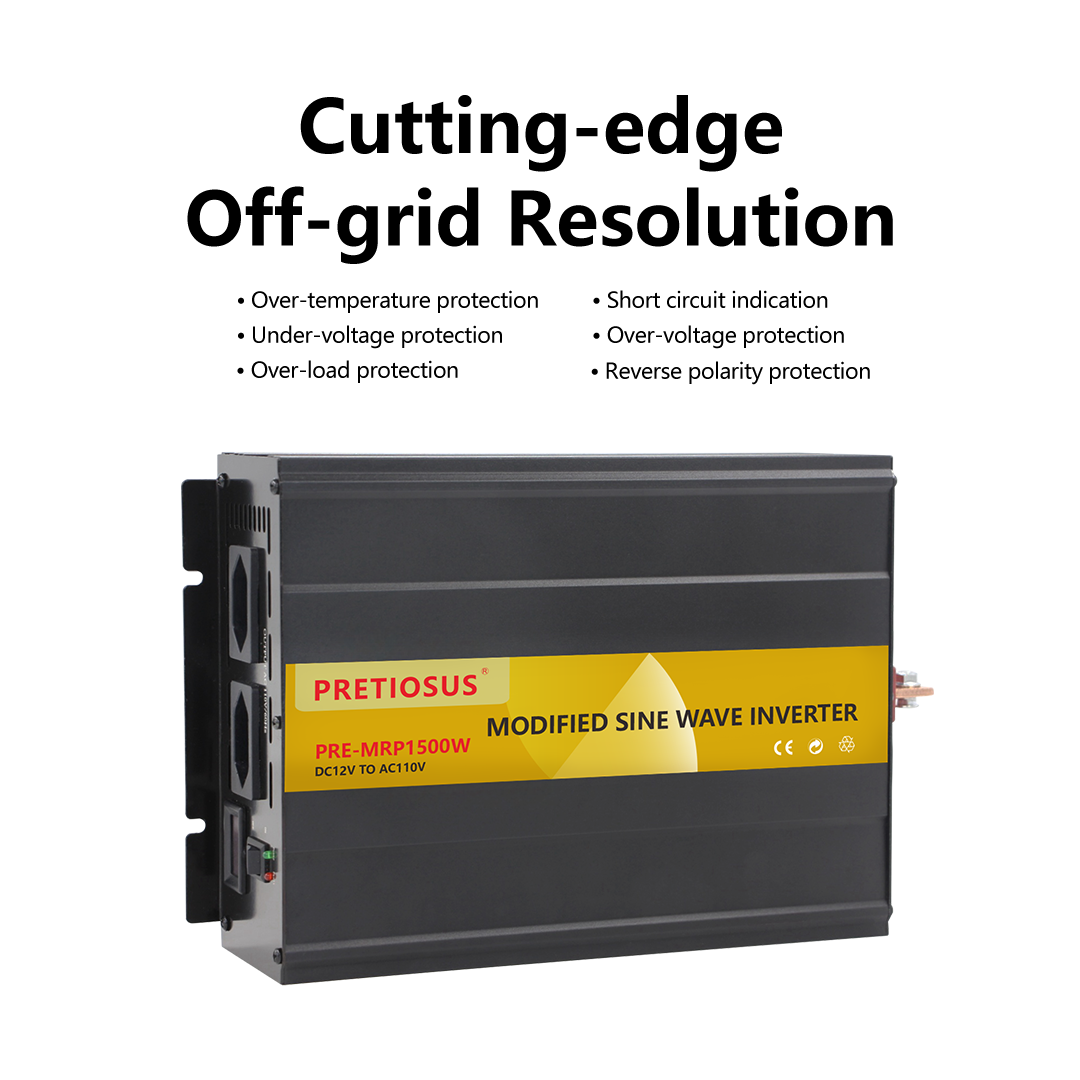

Low voltage protection |
Pre-alarm,LED Red light on,voltage contiously reduce and shutdown |
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
|
Short circuit protection |
Perfect protection and no damage the circuit |
|
Input reverse polarity protection |
Fuse burn-out |
|
Working temperature |
-20℃~60℃ |
|

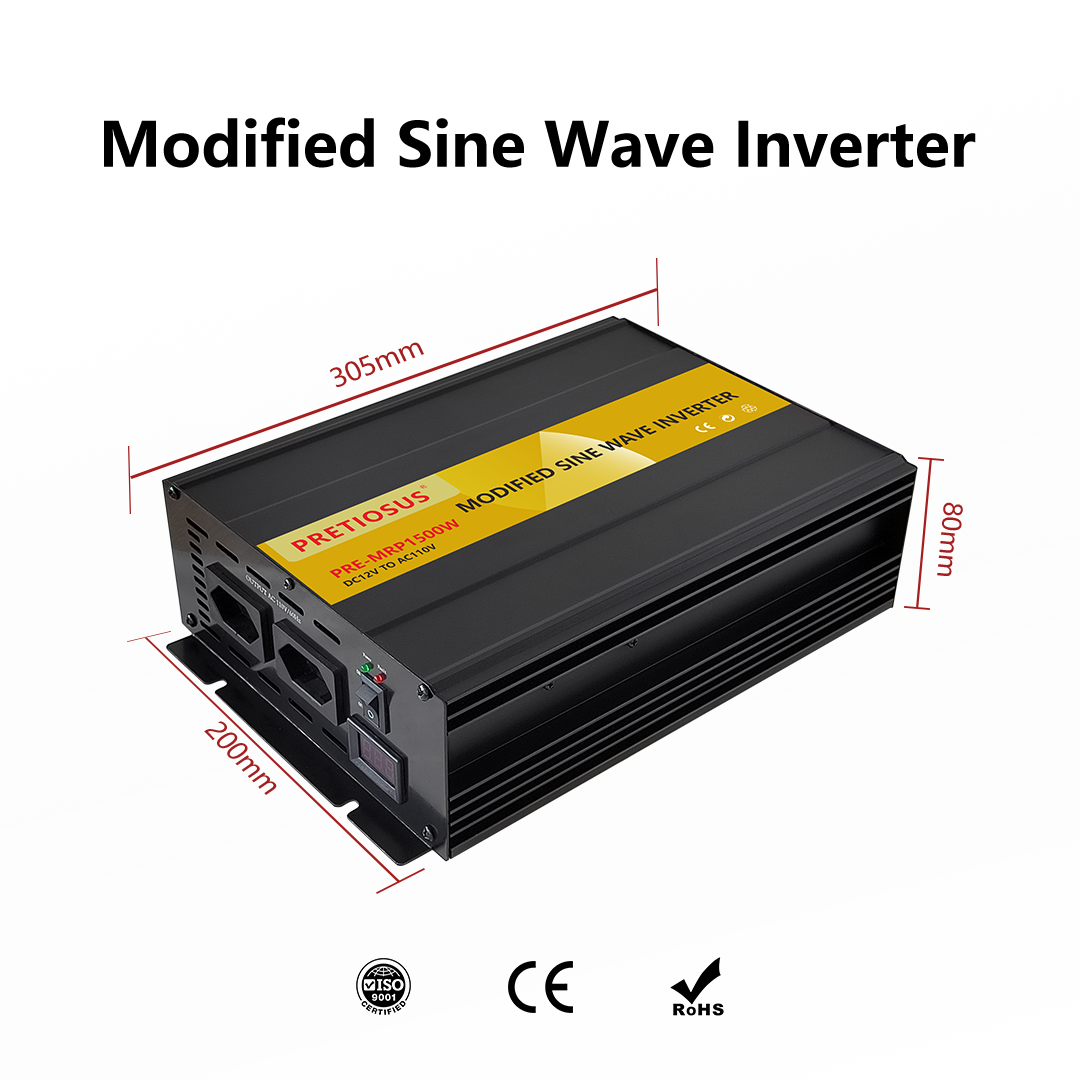

Product Dimension(mm) |
305*200*80mm |
|
Cooling method |
Intelligent air cooling |
|
Application |
used in car or home..etc. |
