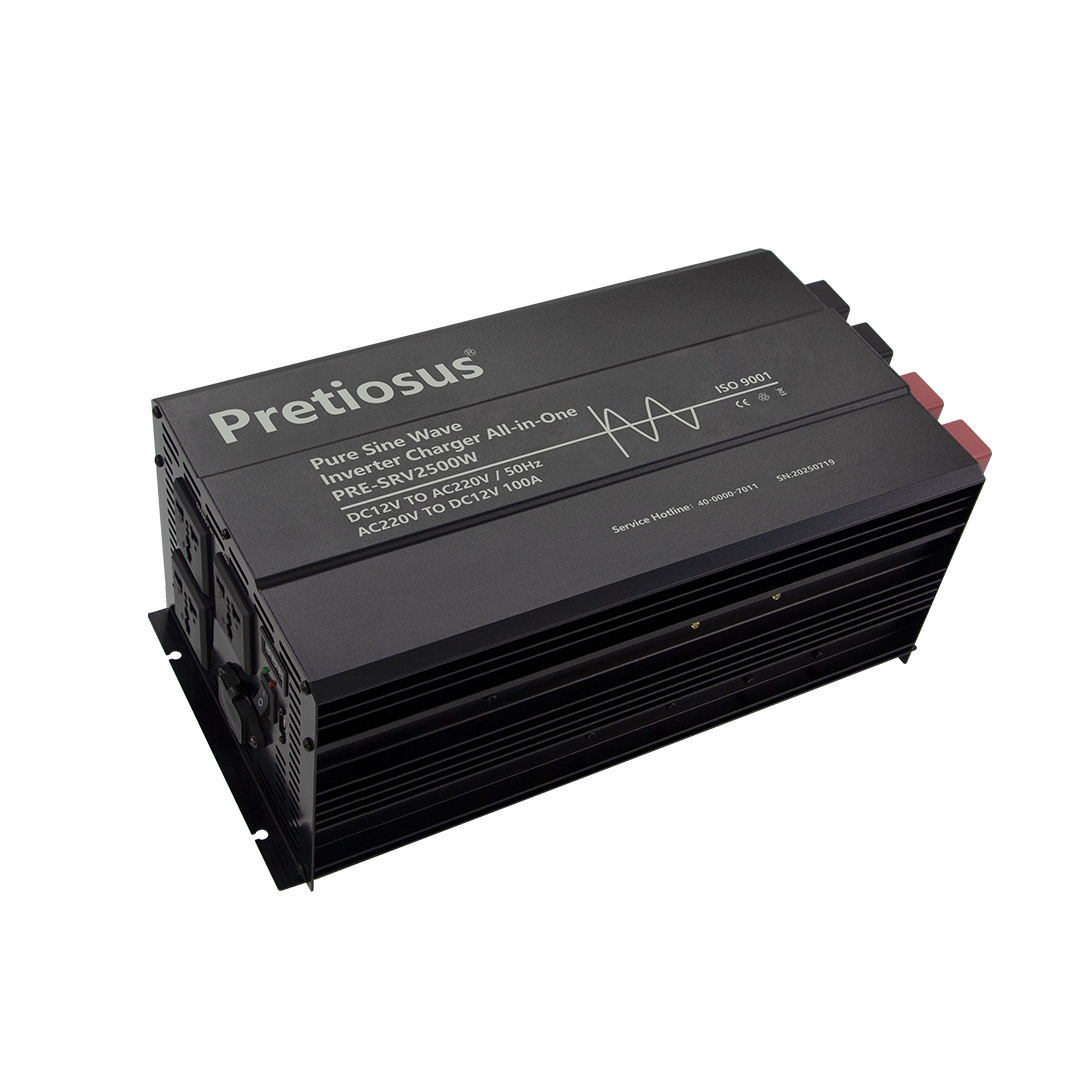

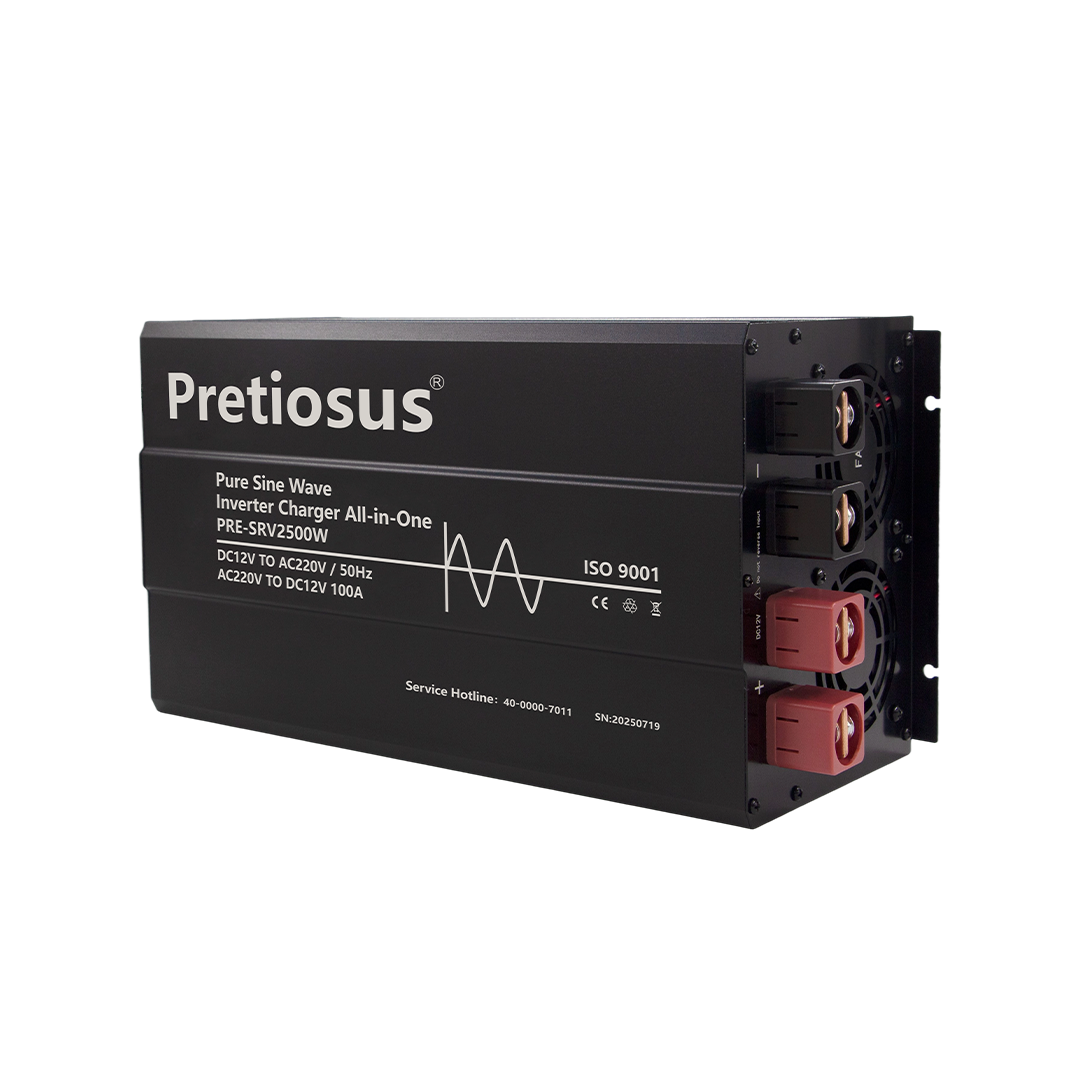

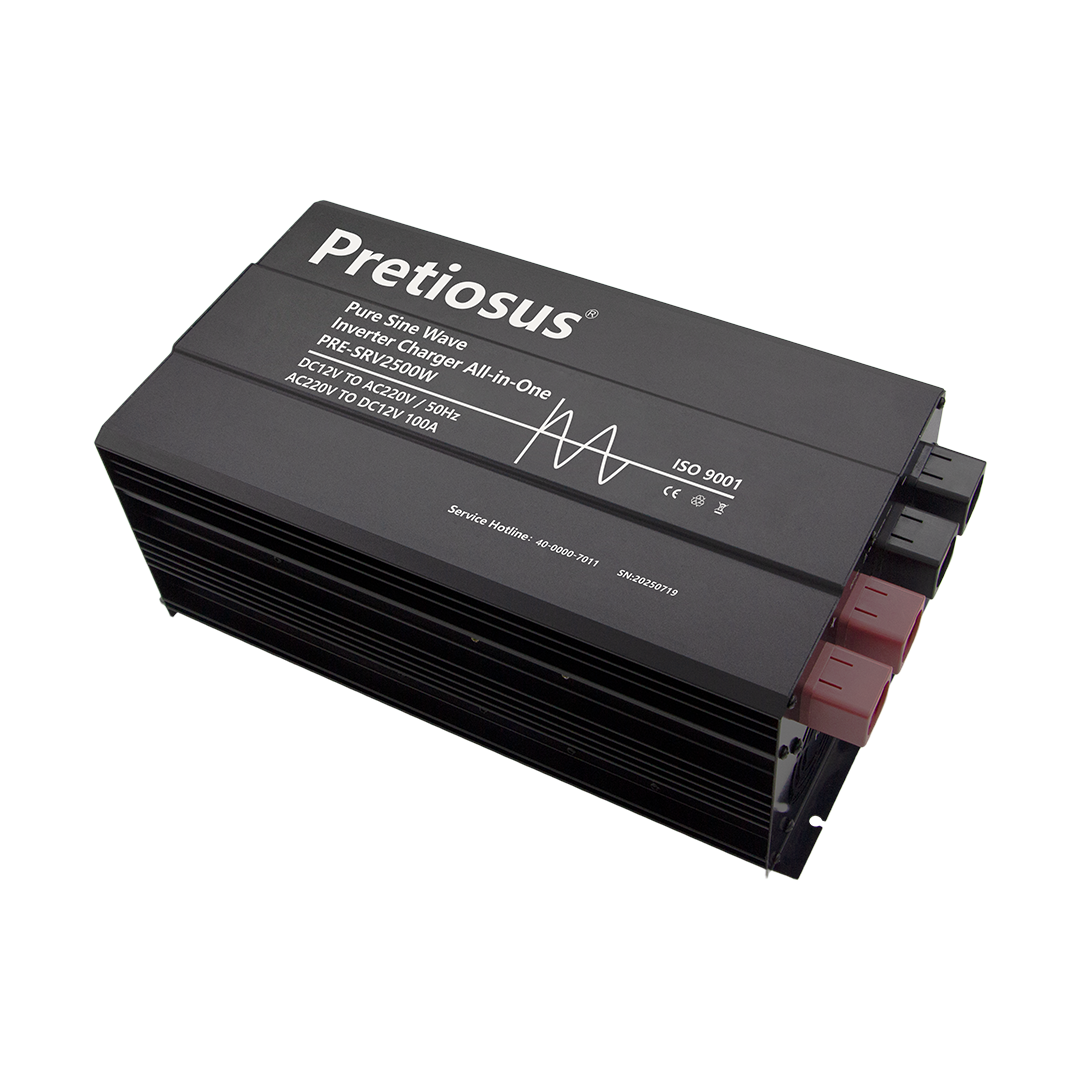

PRE-SRV-2500W DC12V TO AC220V 50Hz，AC220V TO DC12V 100A
Detailed Product Parameters
|
Model |
PRE-SRV2500W |
||
| Place of Origin | Zhejiang,China | ||
|
Rated power |
2500W |
||
|
Peak power |
5000W |
||
|
Input voltage(Range) |
DC12/24/48/60/72V |
||
|
Output voltage(Single) |
AC100/110/120/220/230V± 5% |
||
|
Charger |
with |
||
|
UPS |
without |
||
|
Output frequency |
50/60Hz ± 2 |
||
|
Output waveform |
Pure Sine Wave |
||
|
Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland/France/Germany/CFCI |
||
|
Max.output efficiency |
≥88%-93% |
||
|
Low voltage protection |
Pre-alarm(alarm off after 1sound),LED Red light on,voltage contiously reduce and shutdown |
||
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
||
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
||
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
||
|
Short circuit protection |
Perfect protection and no damage the circuit |
||
|
Input reverse polarity protection |
Fuse burn-out |
||
|
Working temperature |
-20℃~60℃ |
||
| Size |
335×445×137mm |
||
| Weight |
9.45kg |
||
|
Cooling method |
Intelligent air cooling |
||
|
Application |
Used in Home, Home Appliances, Cars, etc. | ||
| Packaging Specification (Quantity per Carton) | 4 Units/Carton | ||
