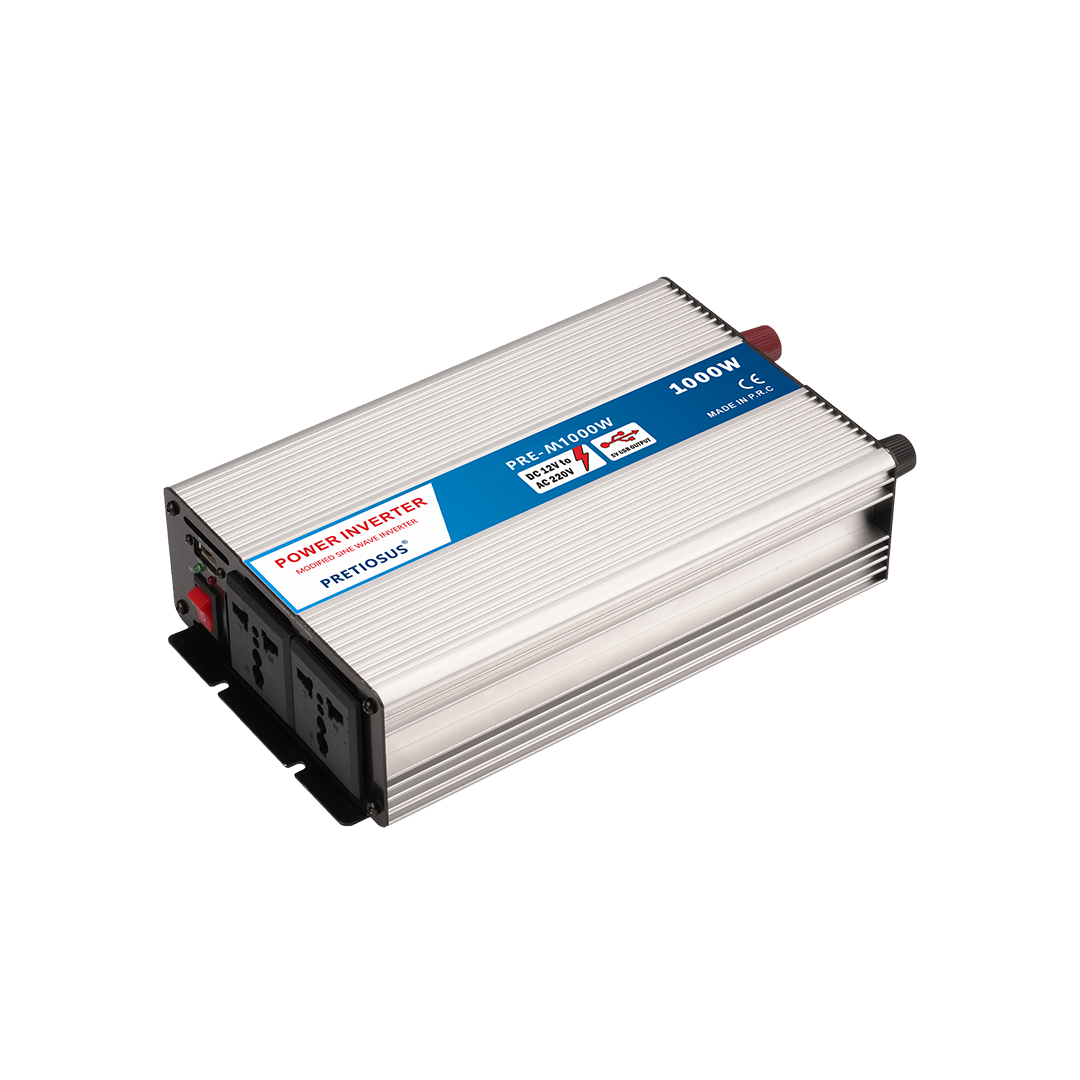

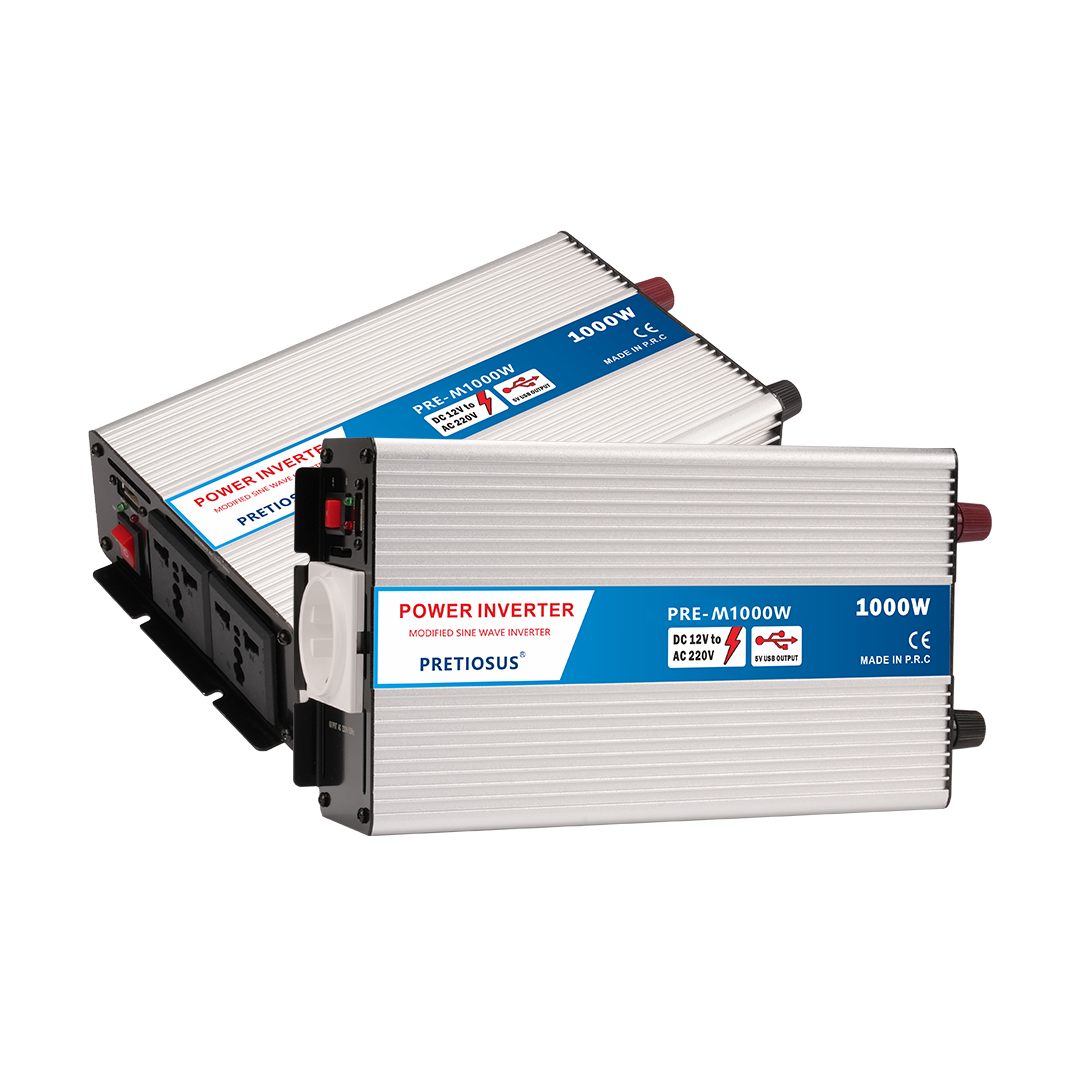

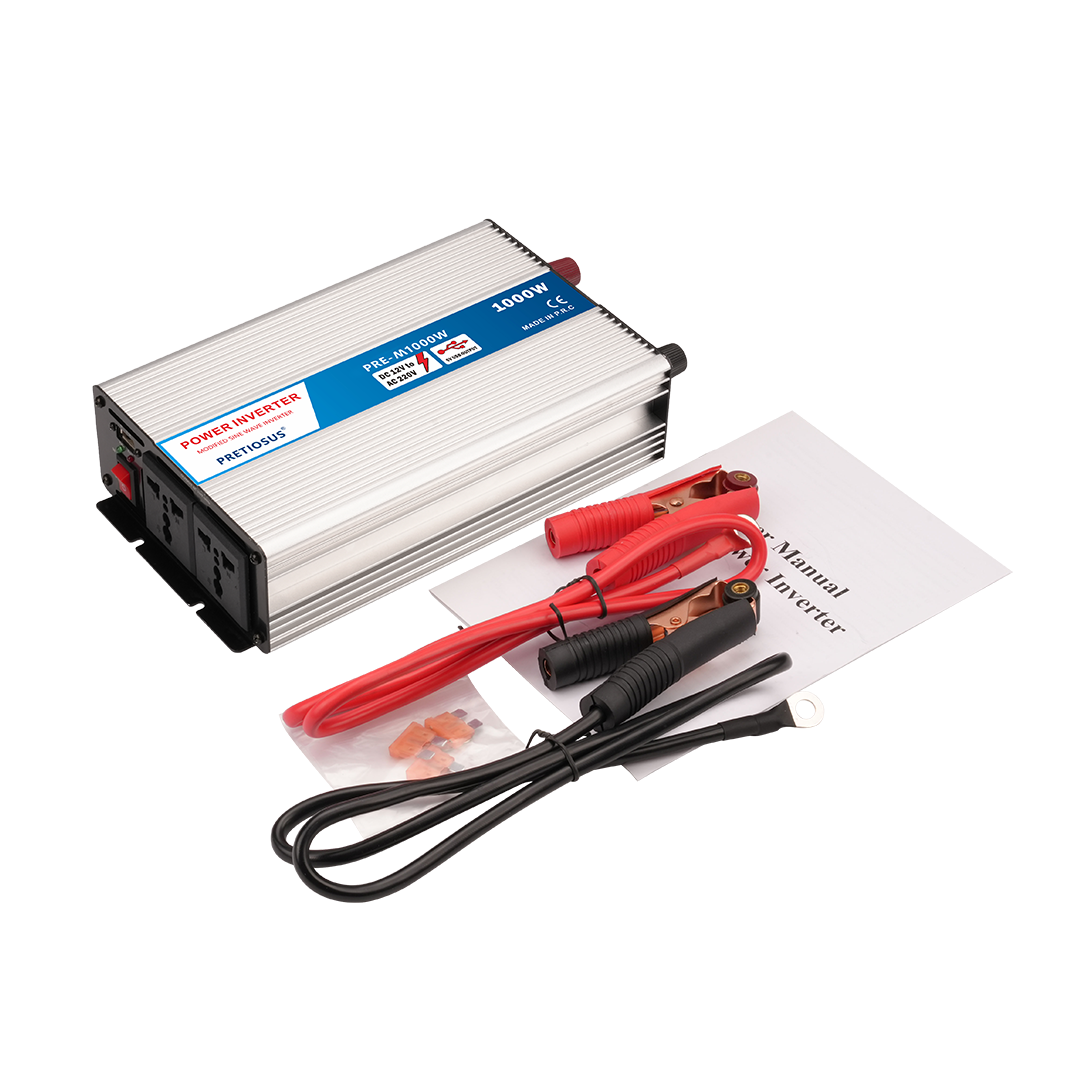

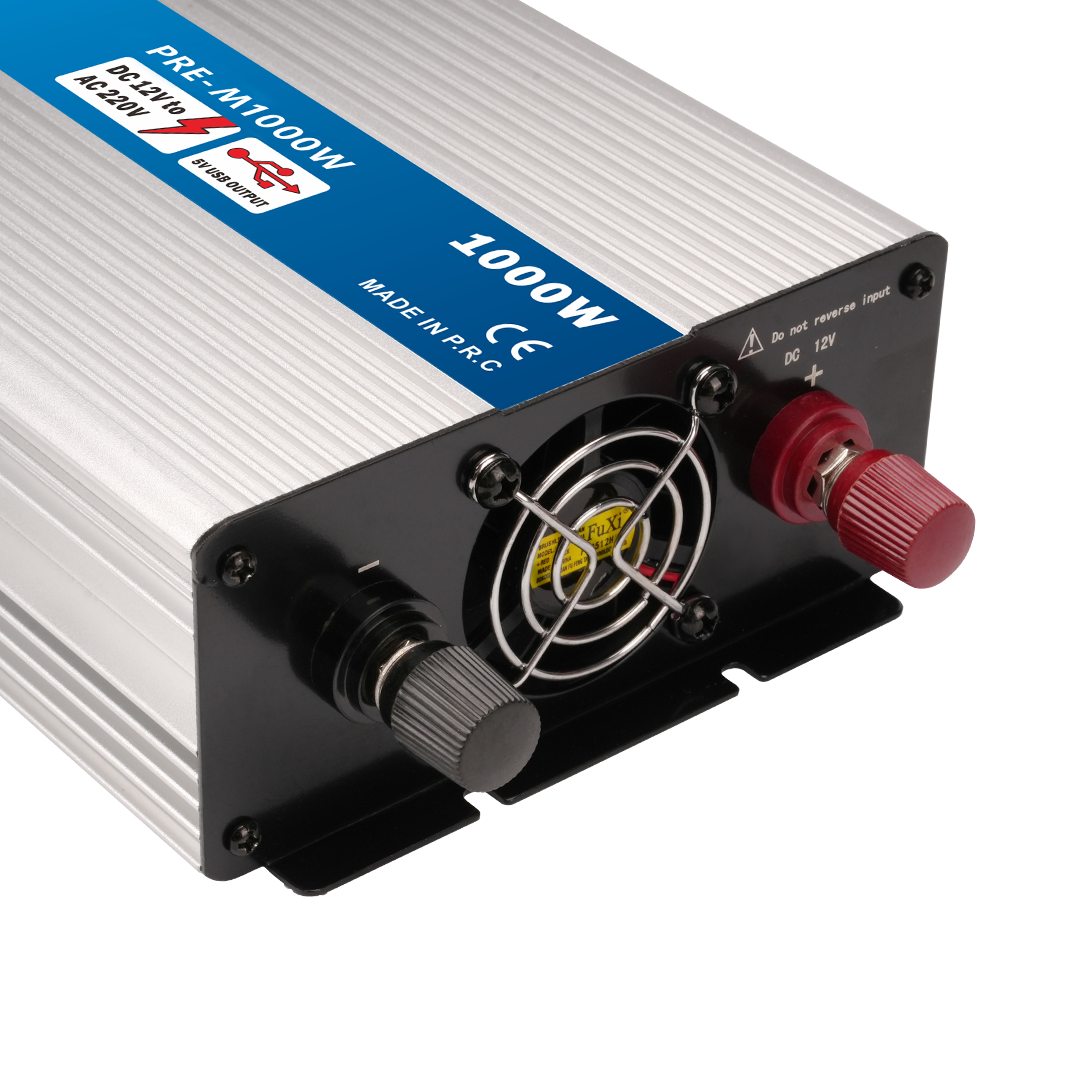

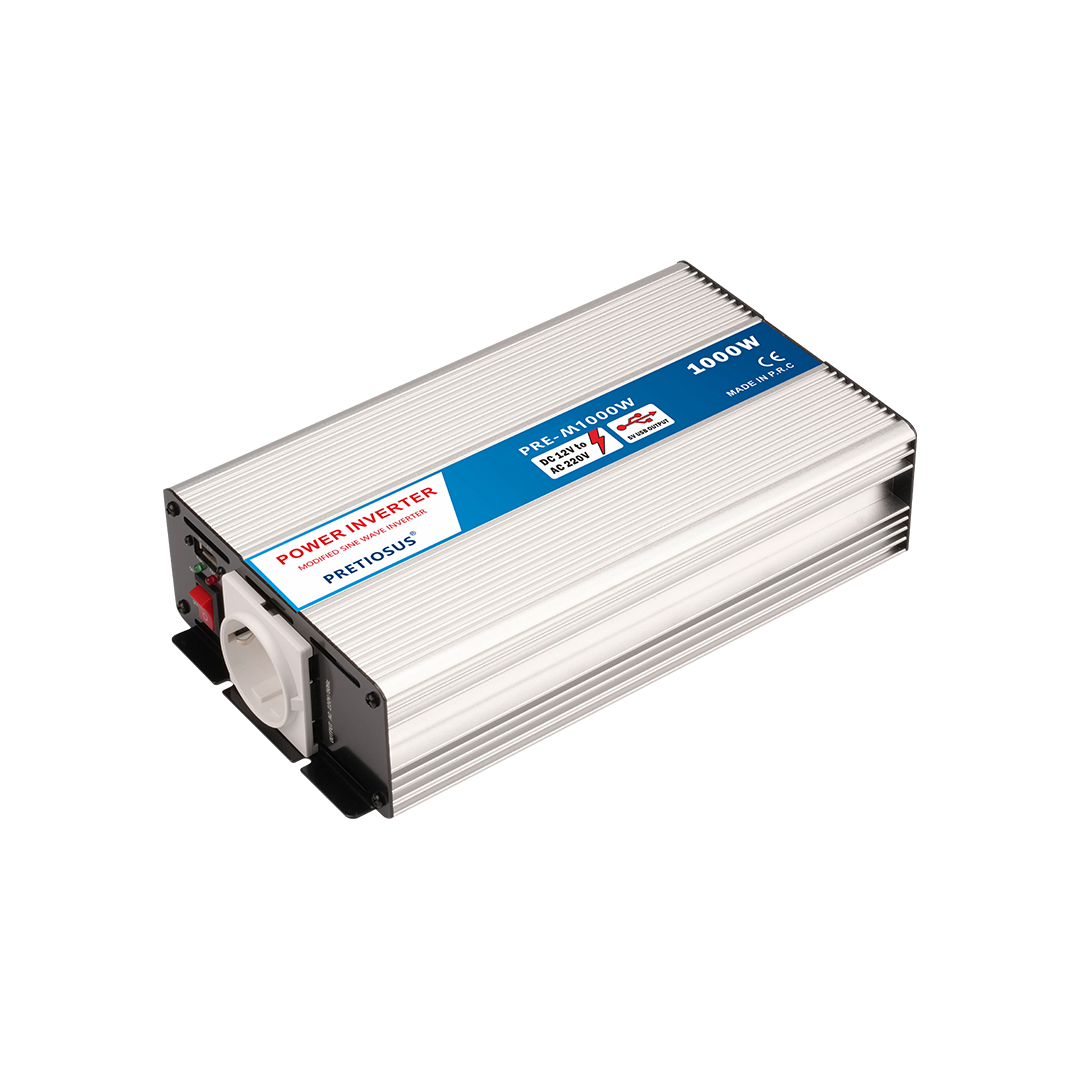

PRE-M1000W DC12V TO AC220V 50-60Hz
Detailed Product Parameters
|
Model |
PRE-M1000W |
| Place of Origin | Zhejiang, China |
|
Output power |
AC110/120/220/230V± 5% |
|
Rated power |
1000W |
|
Peak power |
2000W |
|
Input voltage(Range) |
DC12/24/48/60/72V |
|
Output frequency |
50/60Hz ± 2 |
|
Output waveform |
Modified Sine Wave |
|
Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan etc. |
|
Max.output efficiency |
≥85% |
|

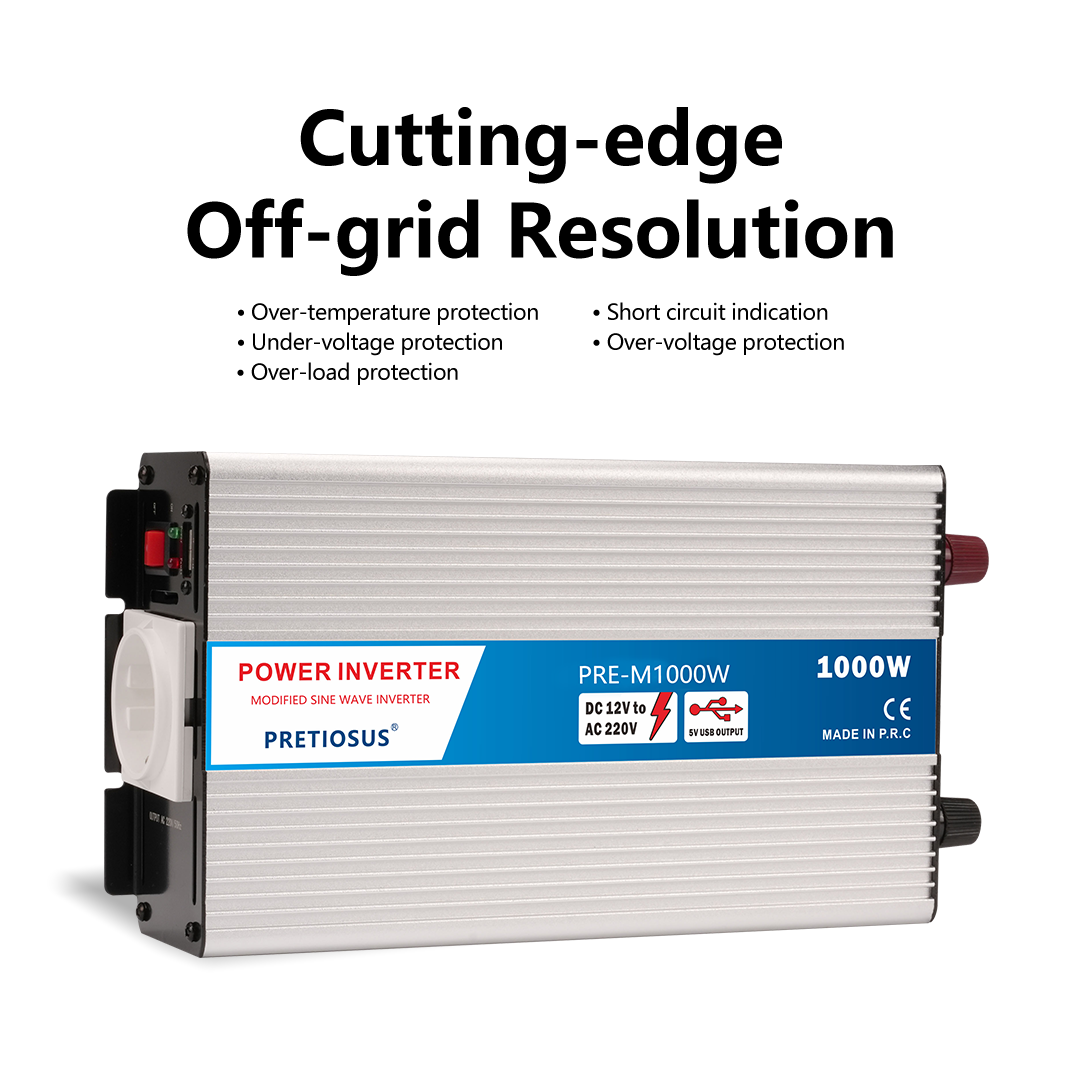

Low voltage protection |
Pre-alarm,LED Red light on,voltage contiously reduce and shutdown |
|
Over voltage protection |
Pre-alarm,LED Red light on,shutdown |
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|
0ver temperature protection |
Pre-alarm,tempurature continously rise,LED Red light on,shutdown |
|
Short circuit protection |
Perfect protection and no damage the circuit |
|
Input reverse polarity protection |
Fuse burn-out |
| Working temperature | -20℃~60℃ |
|
Product Dimension(mm) |
258*140*62mm |
