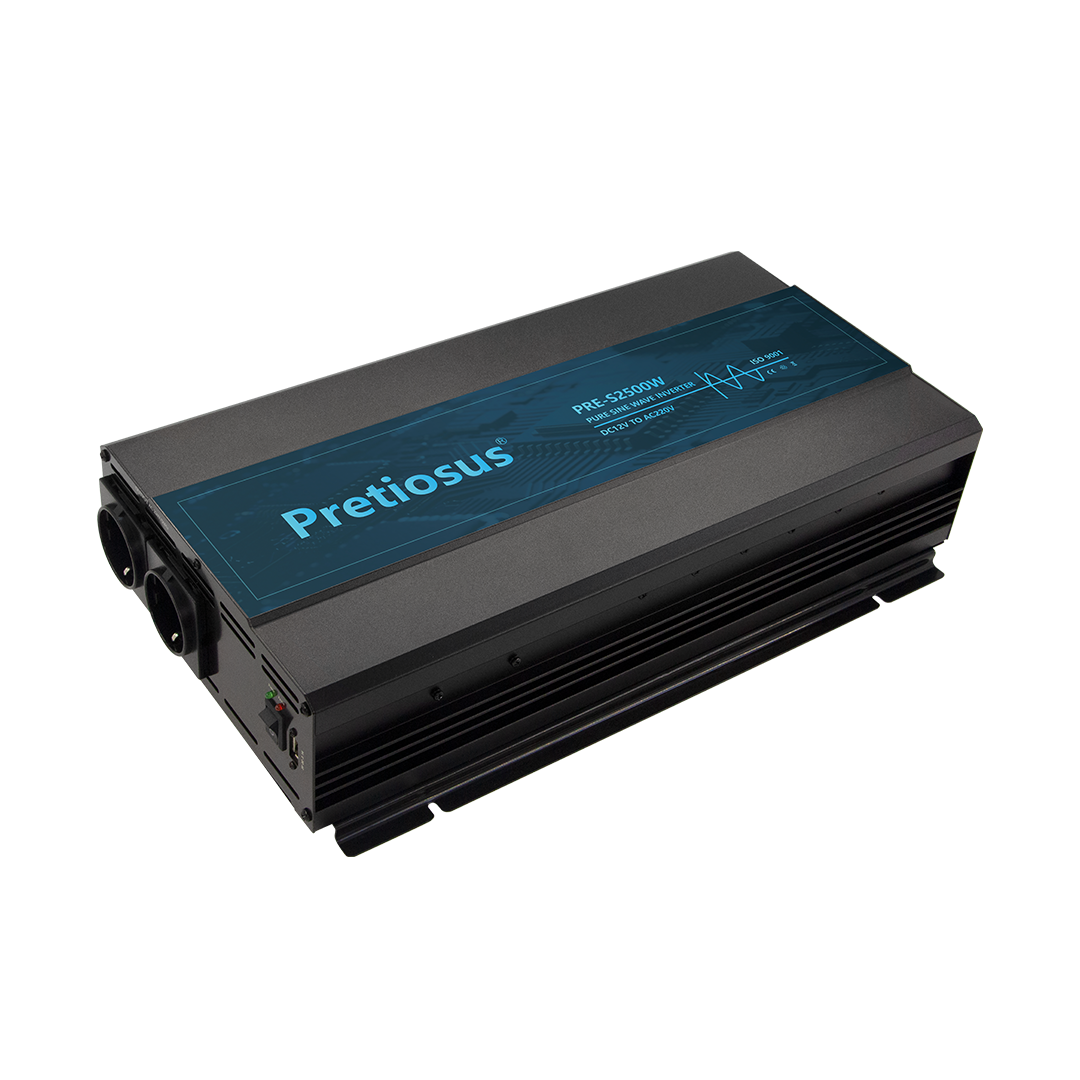

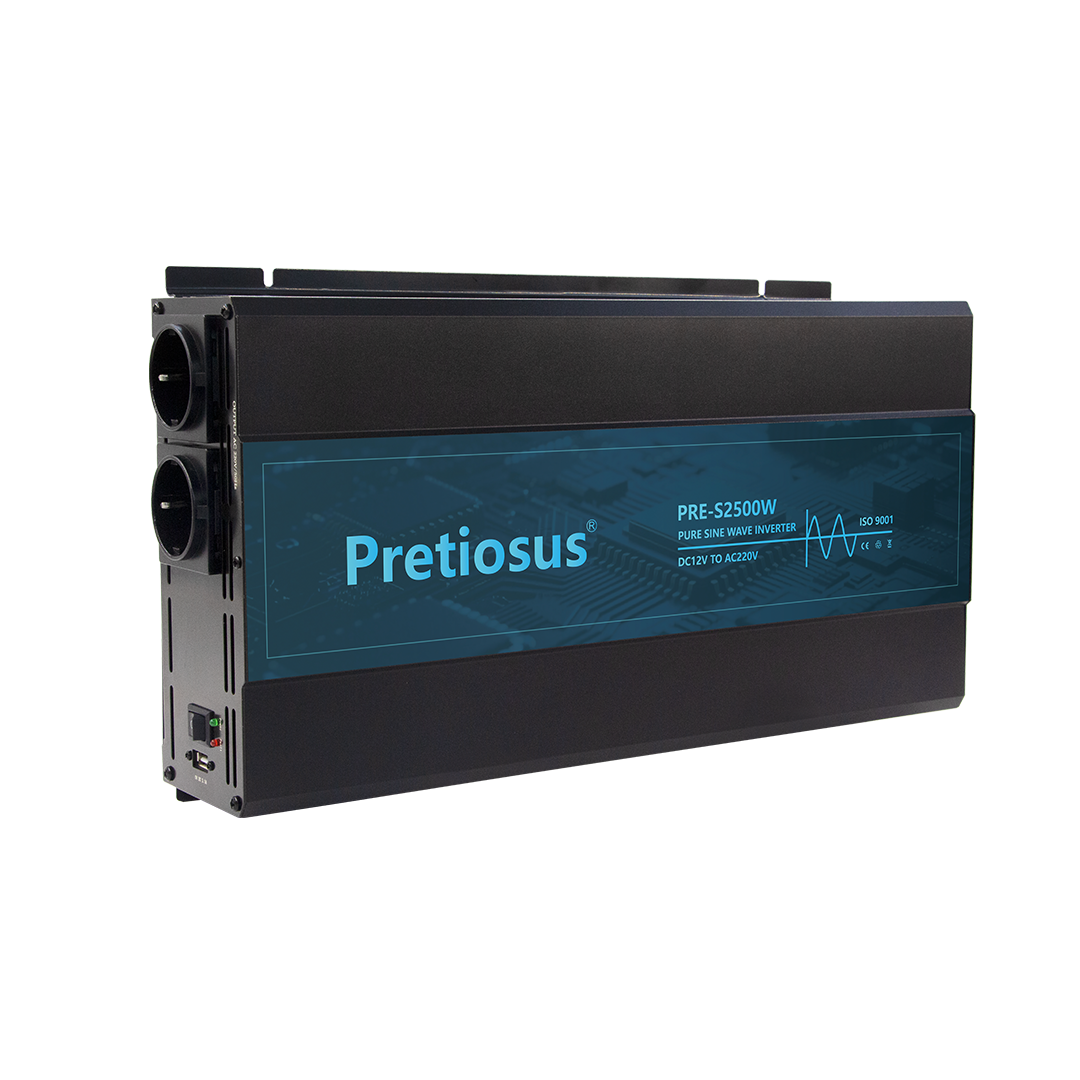

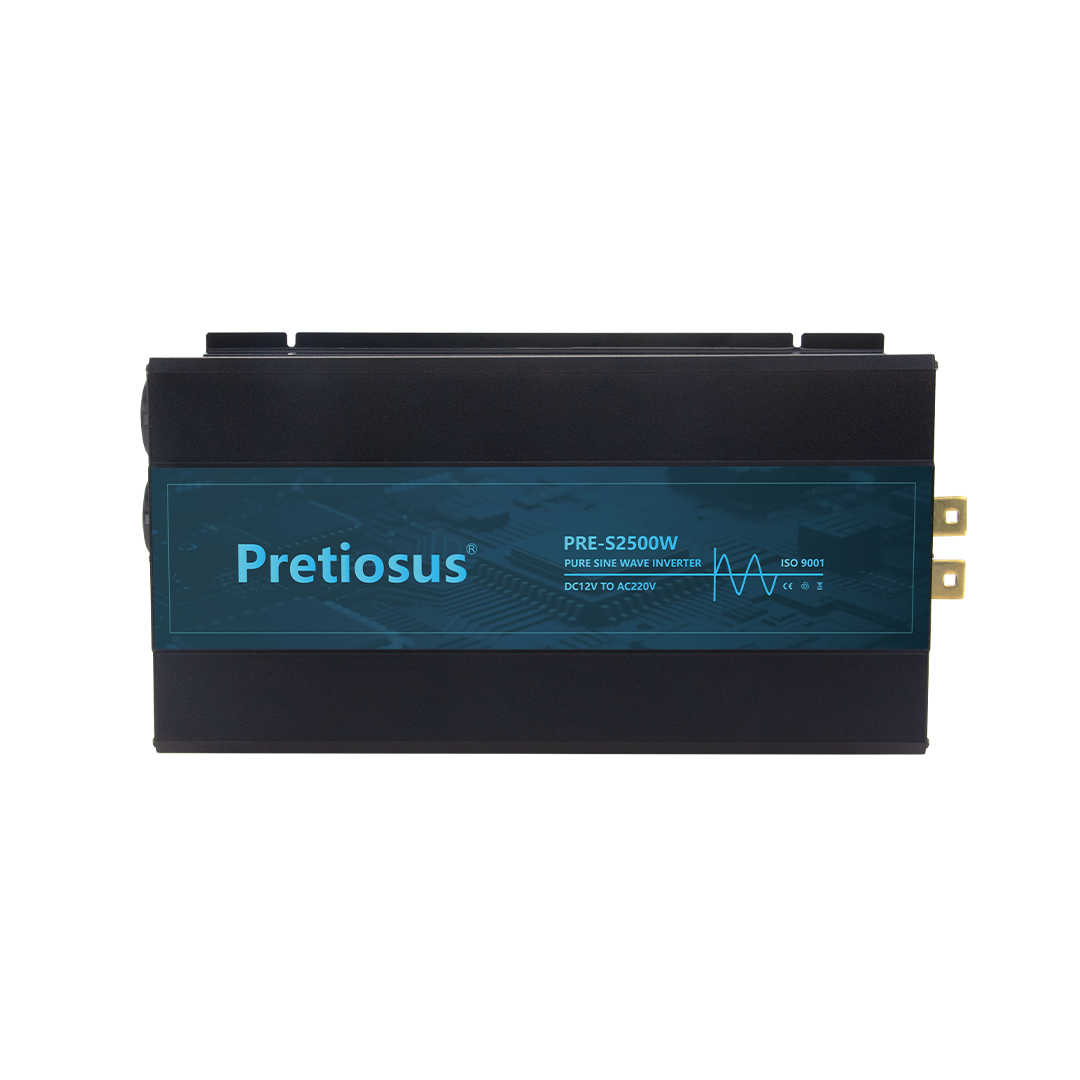

PRE-S2500W DC12V TO AC220V 50Hz
Detailed Product Parameters
|
Model |
PRE-S2500W |
| Place of Origin | Zhejiang, China |
|
Rated power |
2500W |
|
Peak power |
5000W |
|

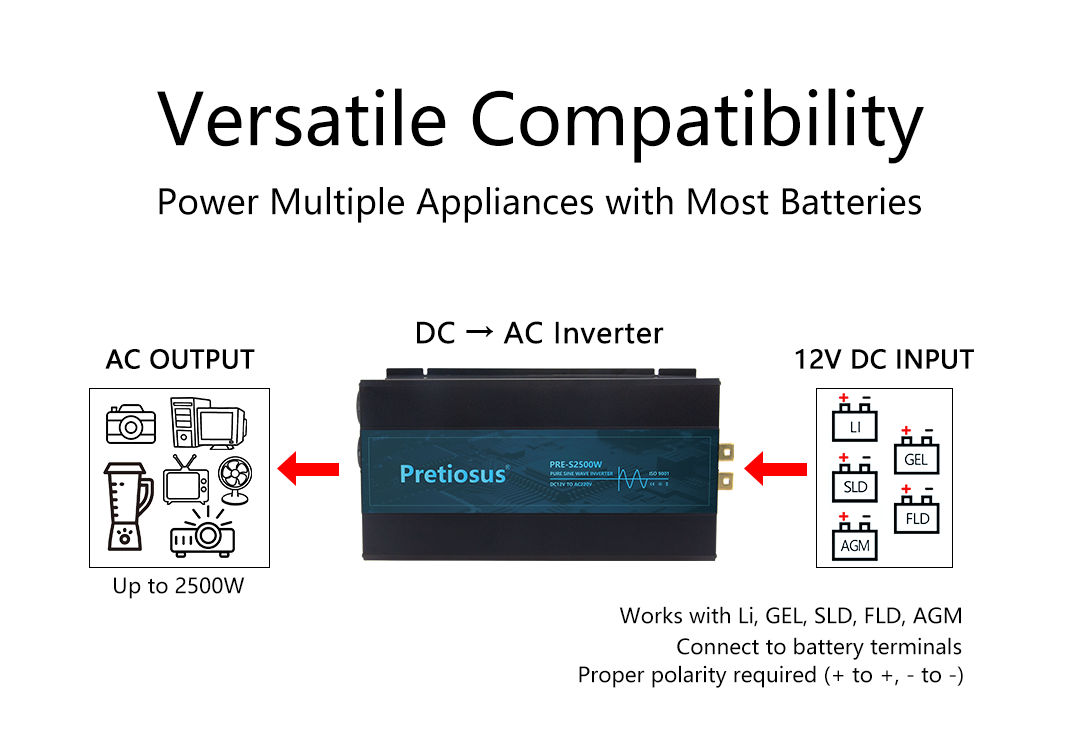

Input voltage(Range) |
DC12/24/48/60/72V |
|
Output voltage(Single) |
AC110/120/220/230V ±5% |
|
Charger |
without |
|
UPS |
without |
|
Output frequency |
50Hz or 60Hz ±2 |
|
Output waveform |
Pure Sine Wave |
|

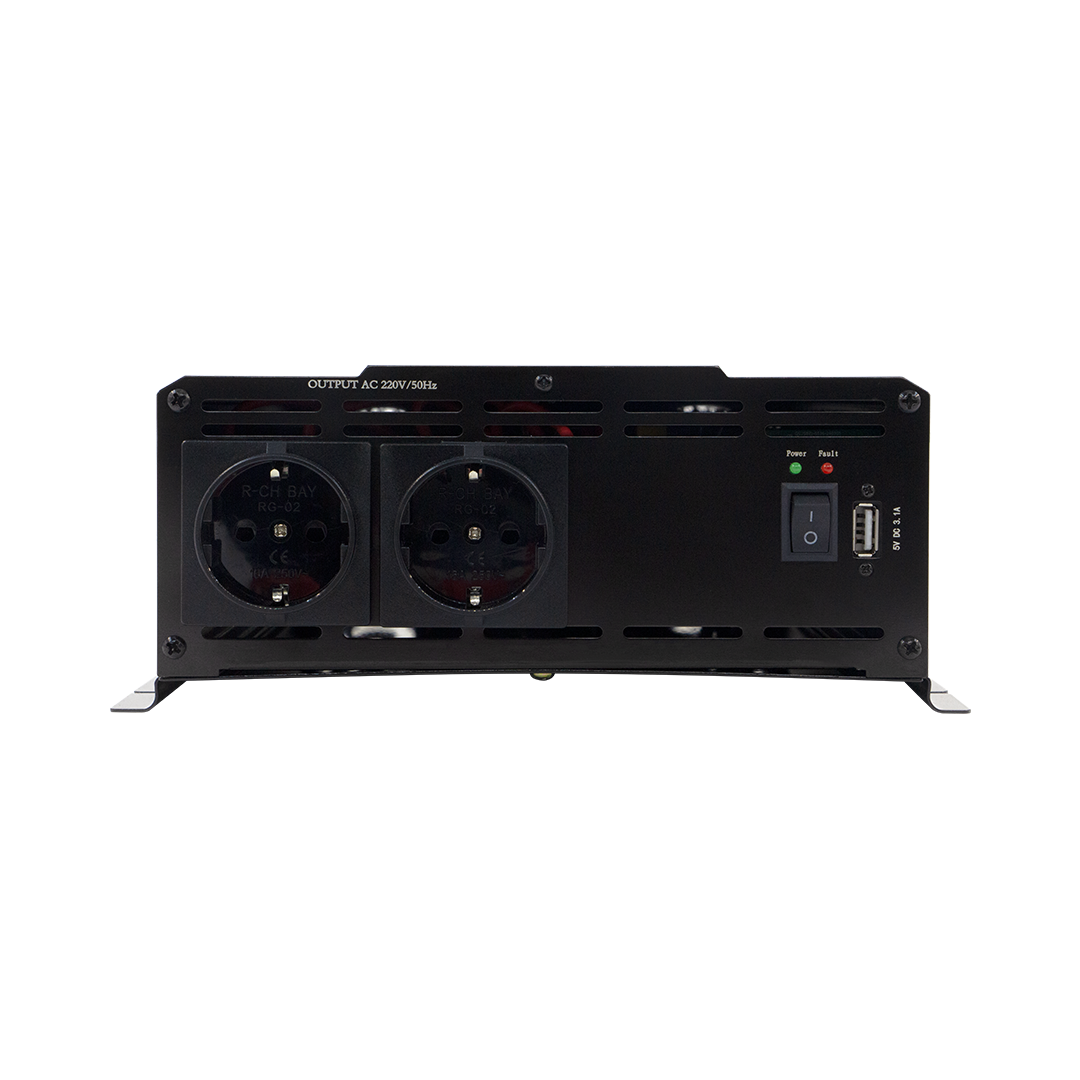

Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland/France/Germany/CFCI |
|
USB port |
5V DC 2.1A |
|
Max.output efficiency |
≥88% |
|

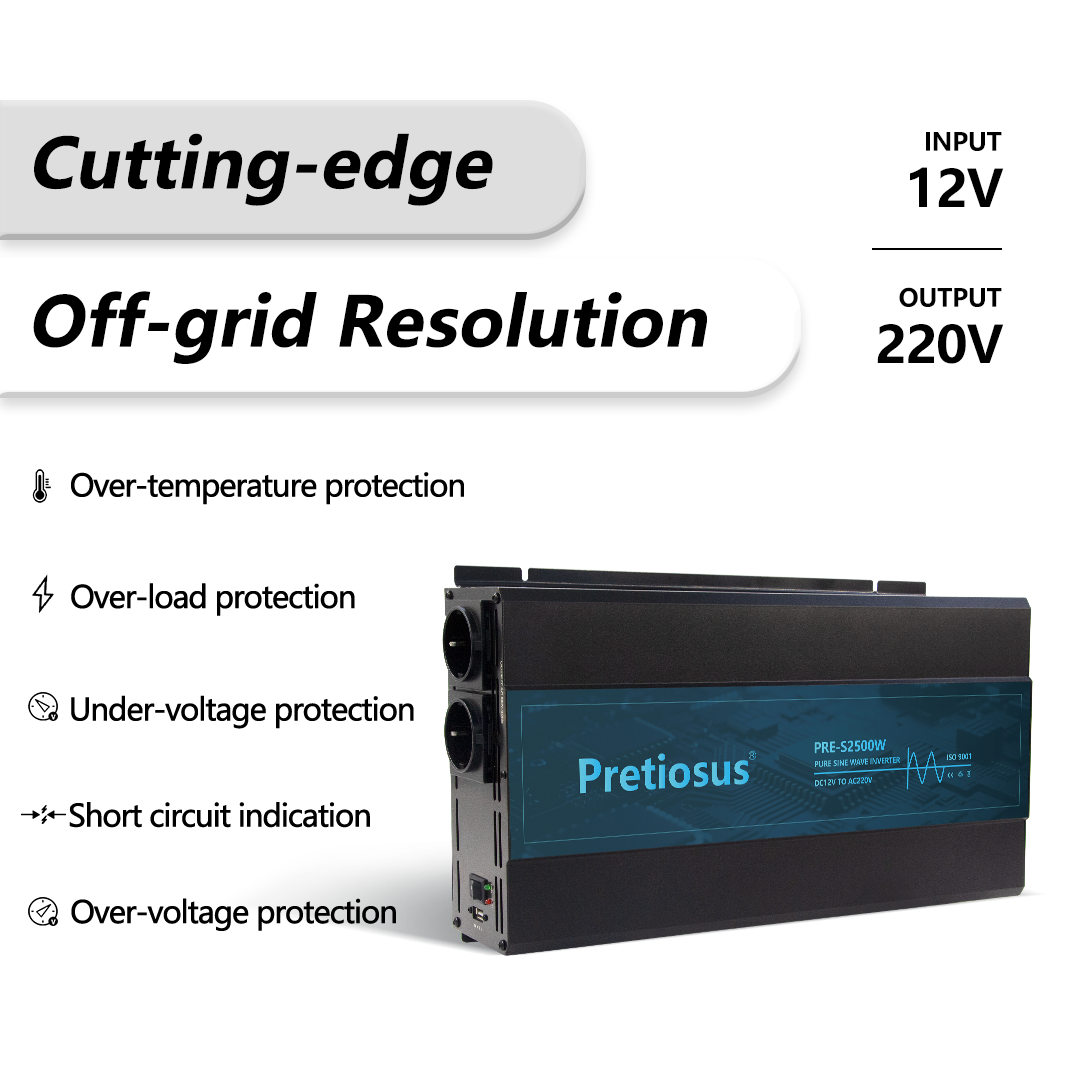

Low voltage protection |
Pre-alarm(alarm off after 1sound),LED Red light on,voltage contiously reduce and shutdown |
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
|
Short circuit protection |
Perfect protection and no damage the circuit |

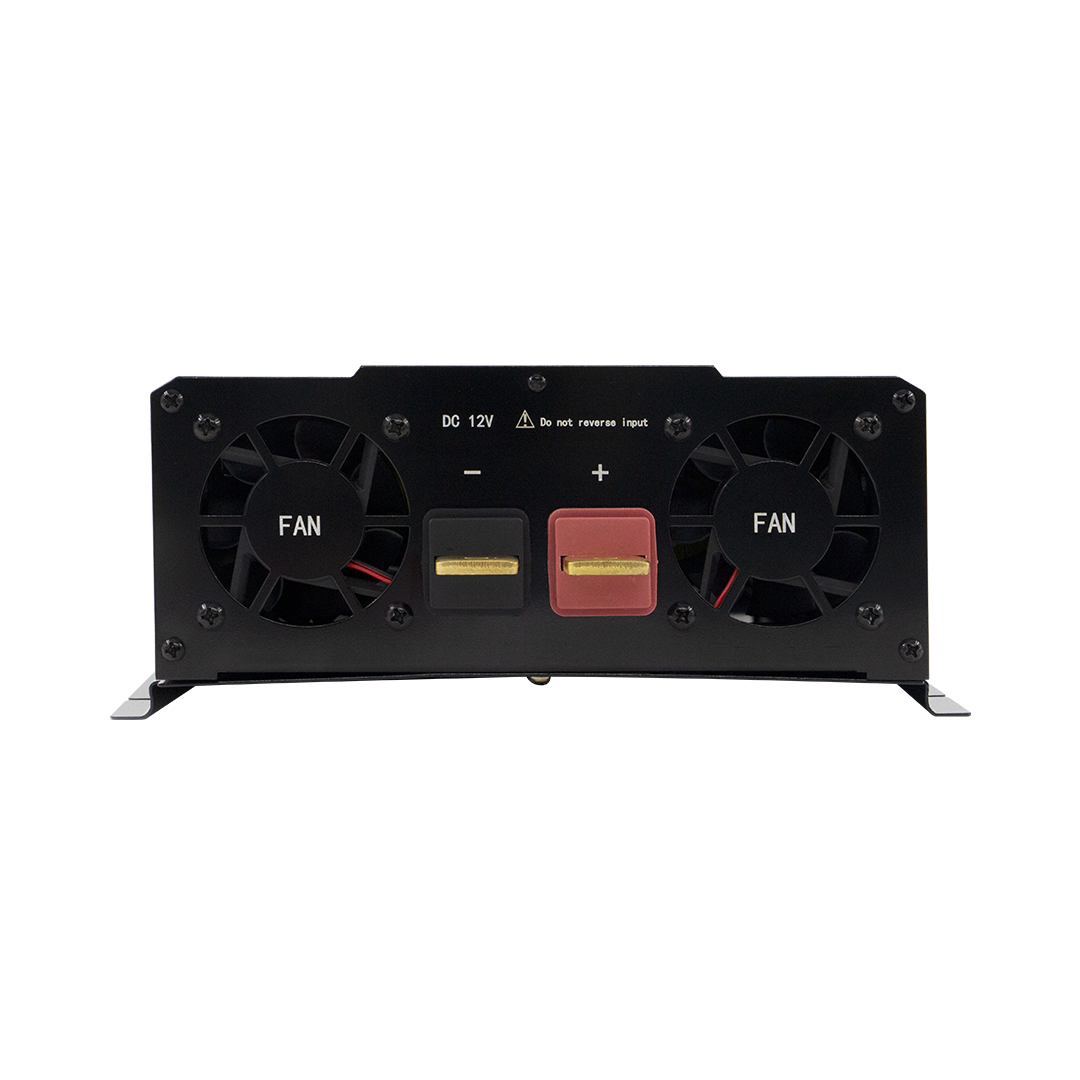

| Input reverse polarity protection | Fuse burn-out |

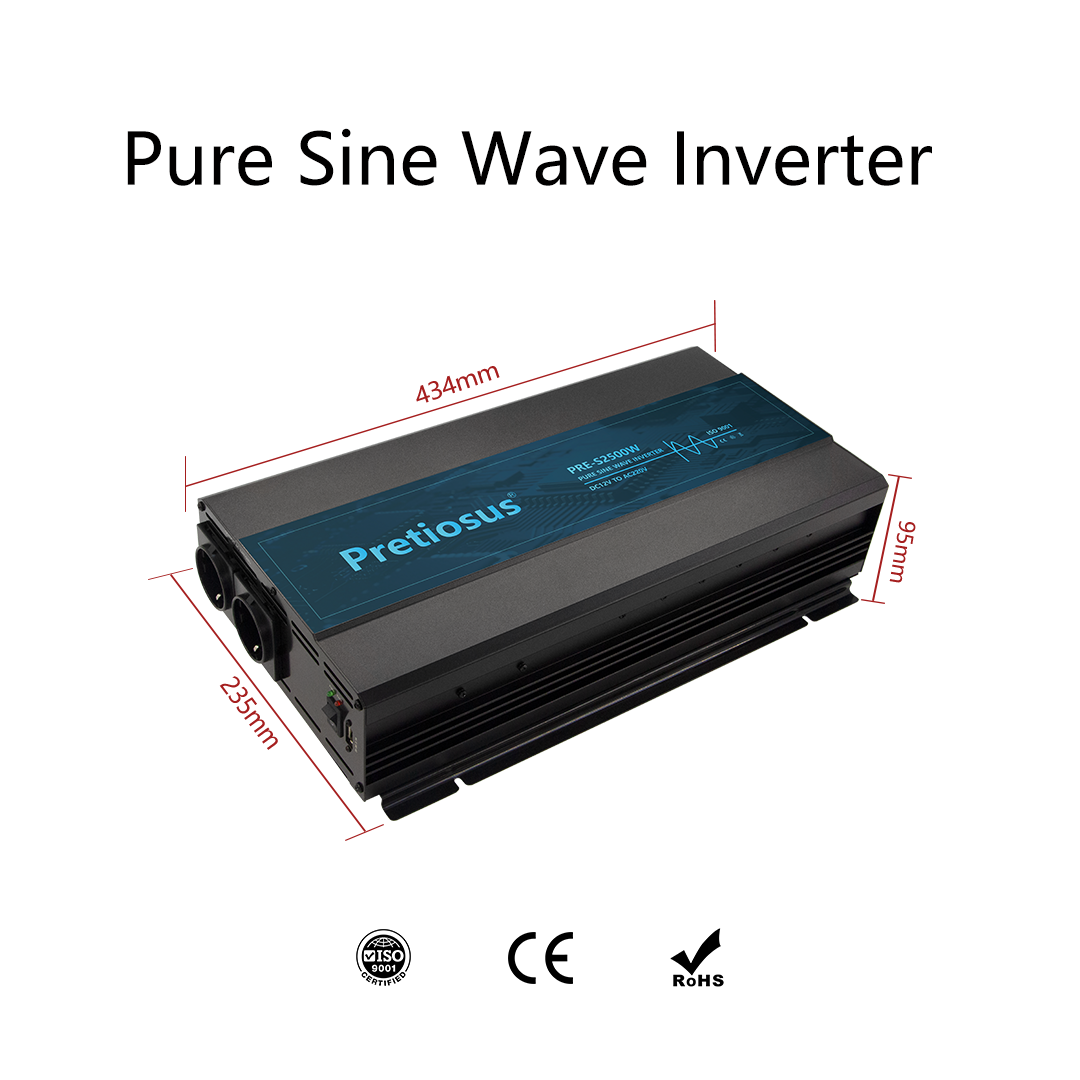

| Size | 43.4X23.5X9.5CM |
| Weight | 4KG |
|
Application |
used in car or home..etc. |
