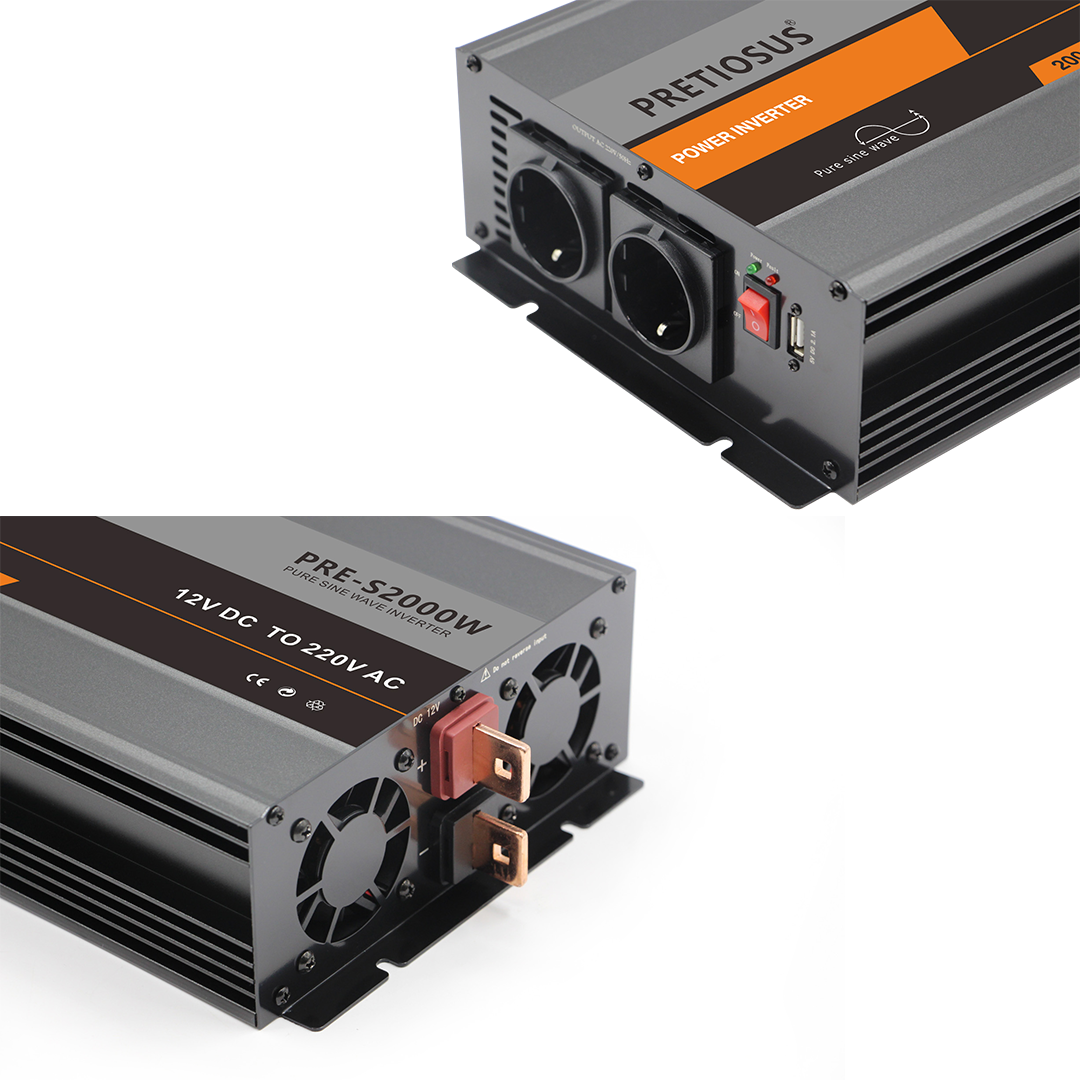

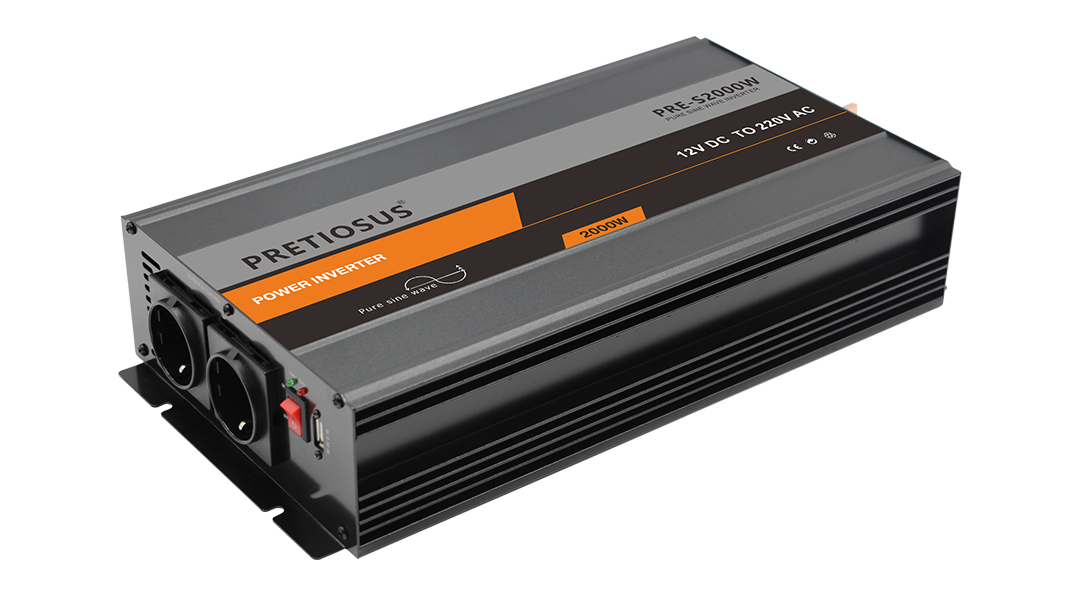

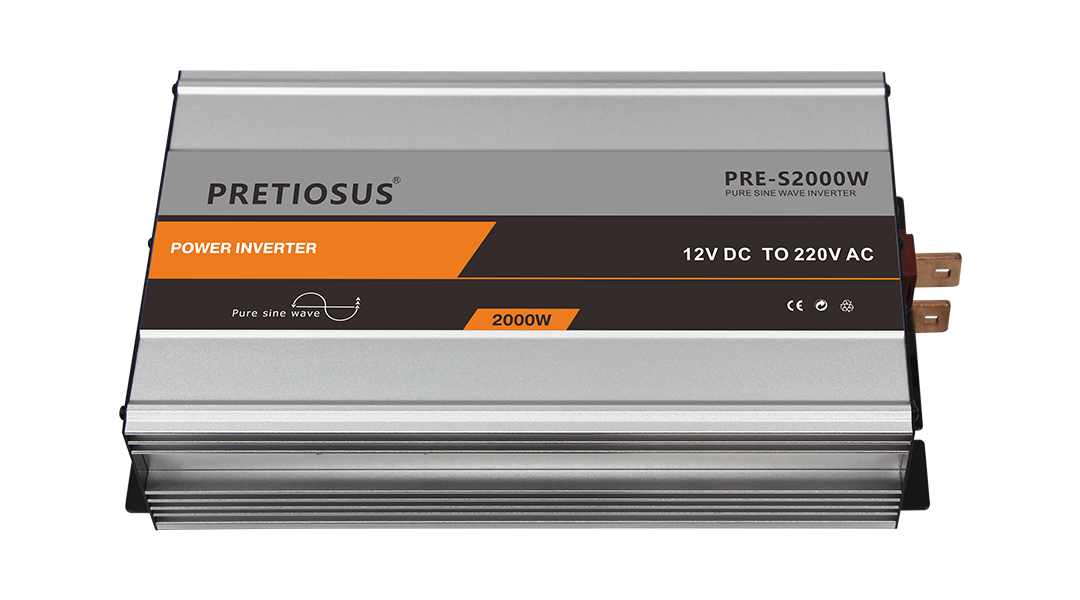

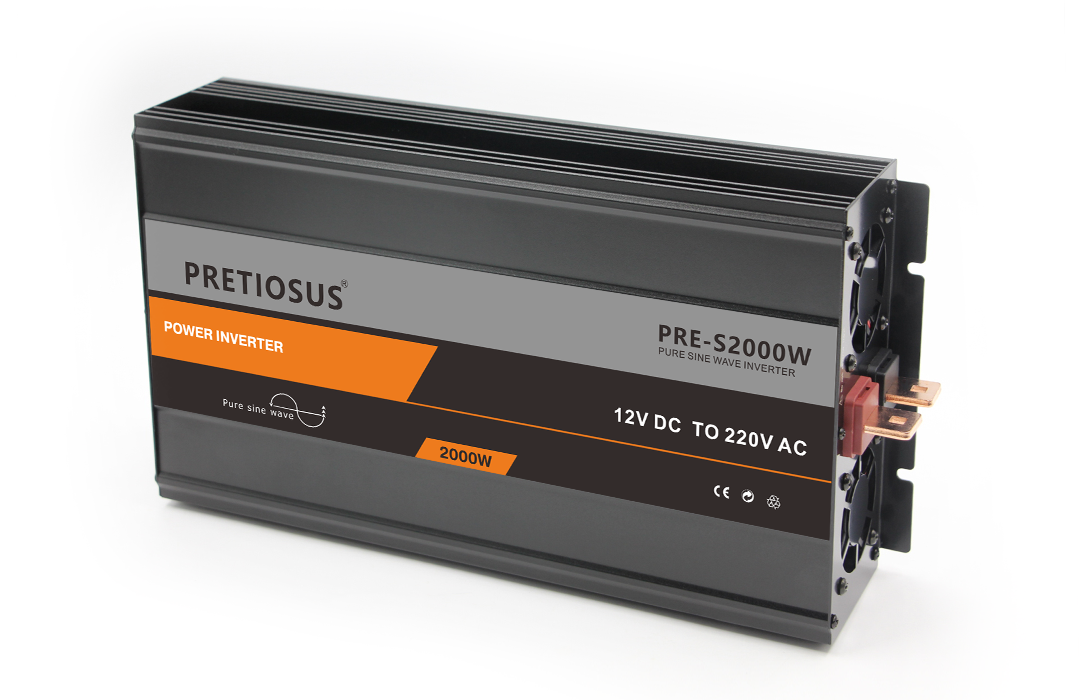

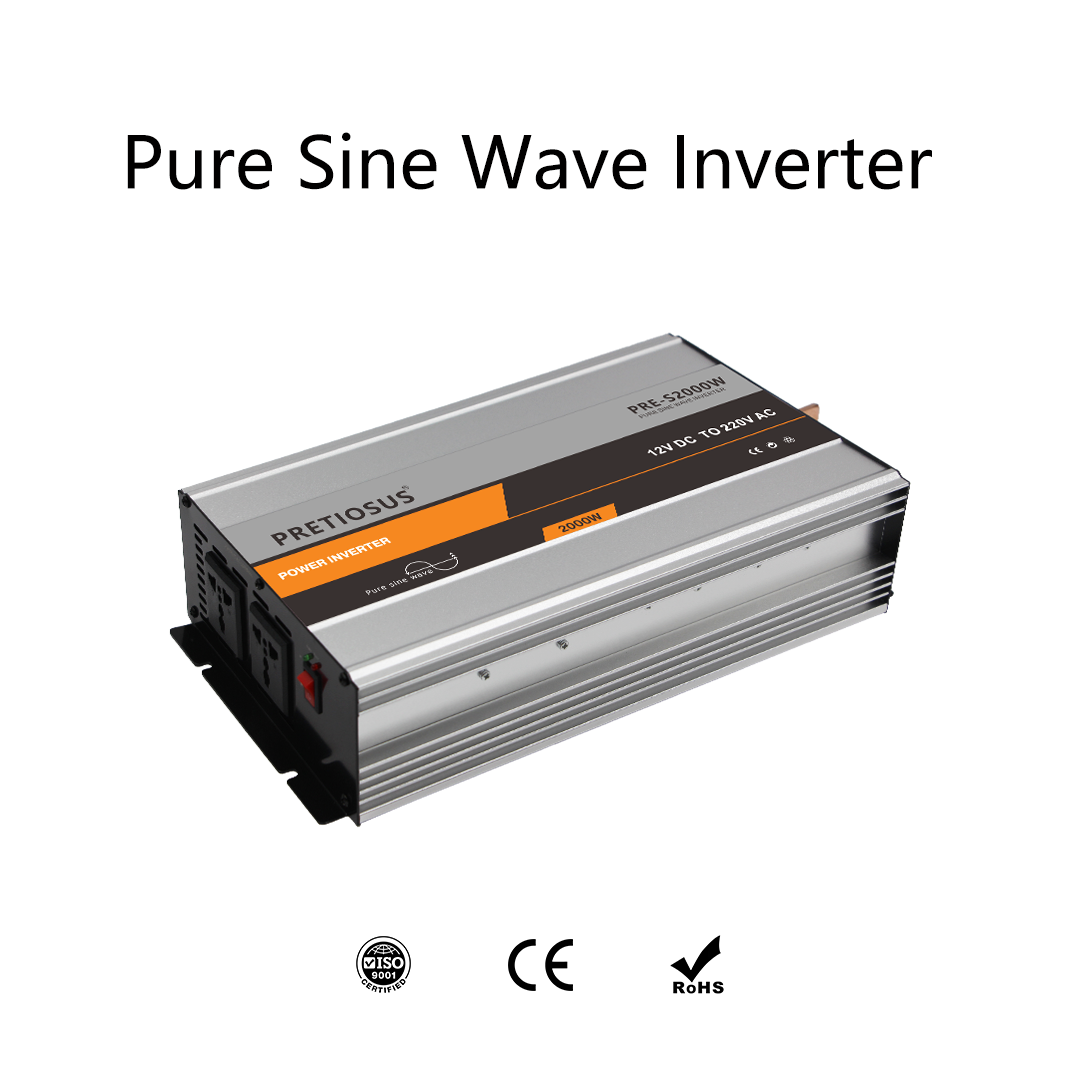

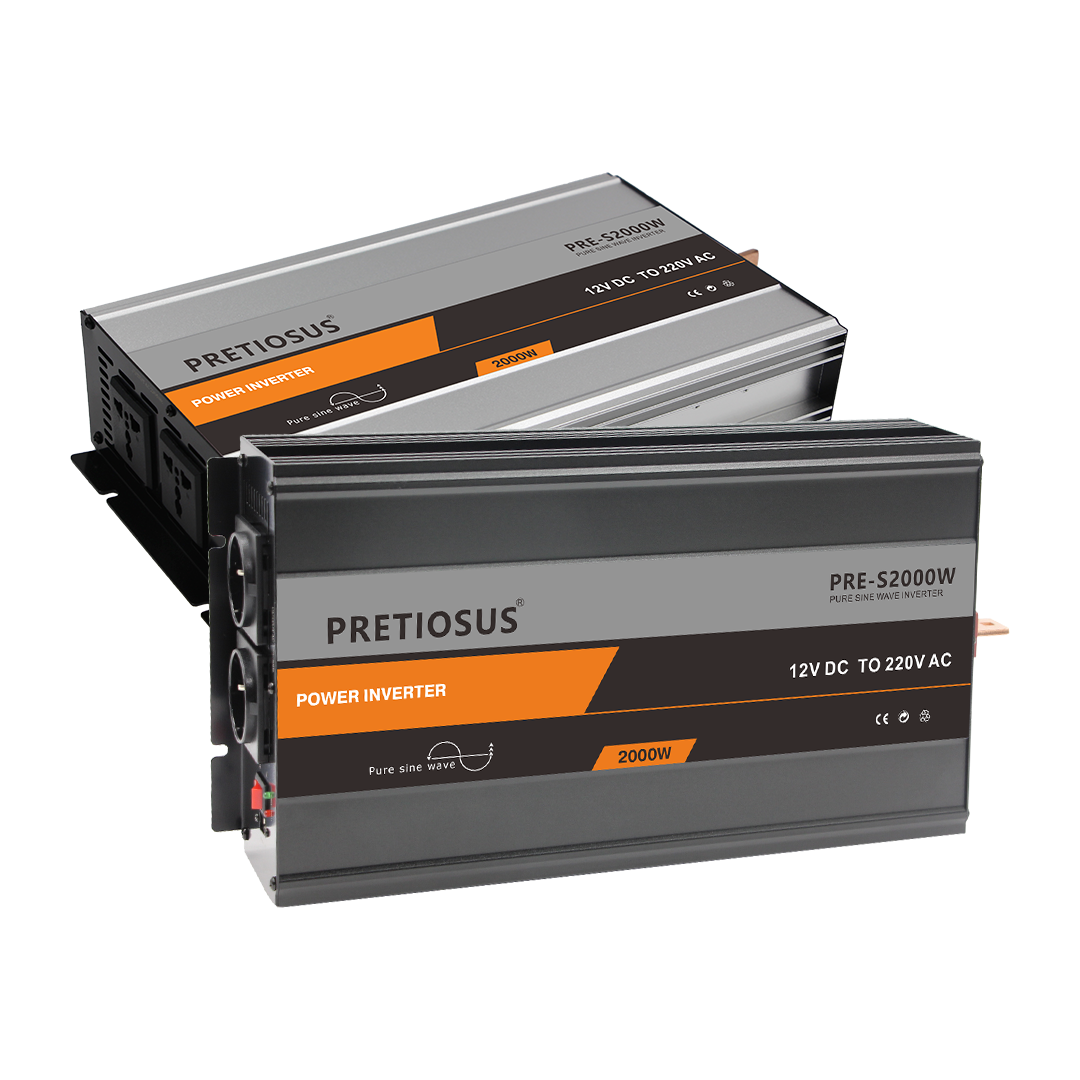

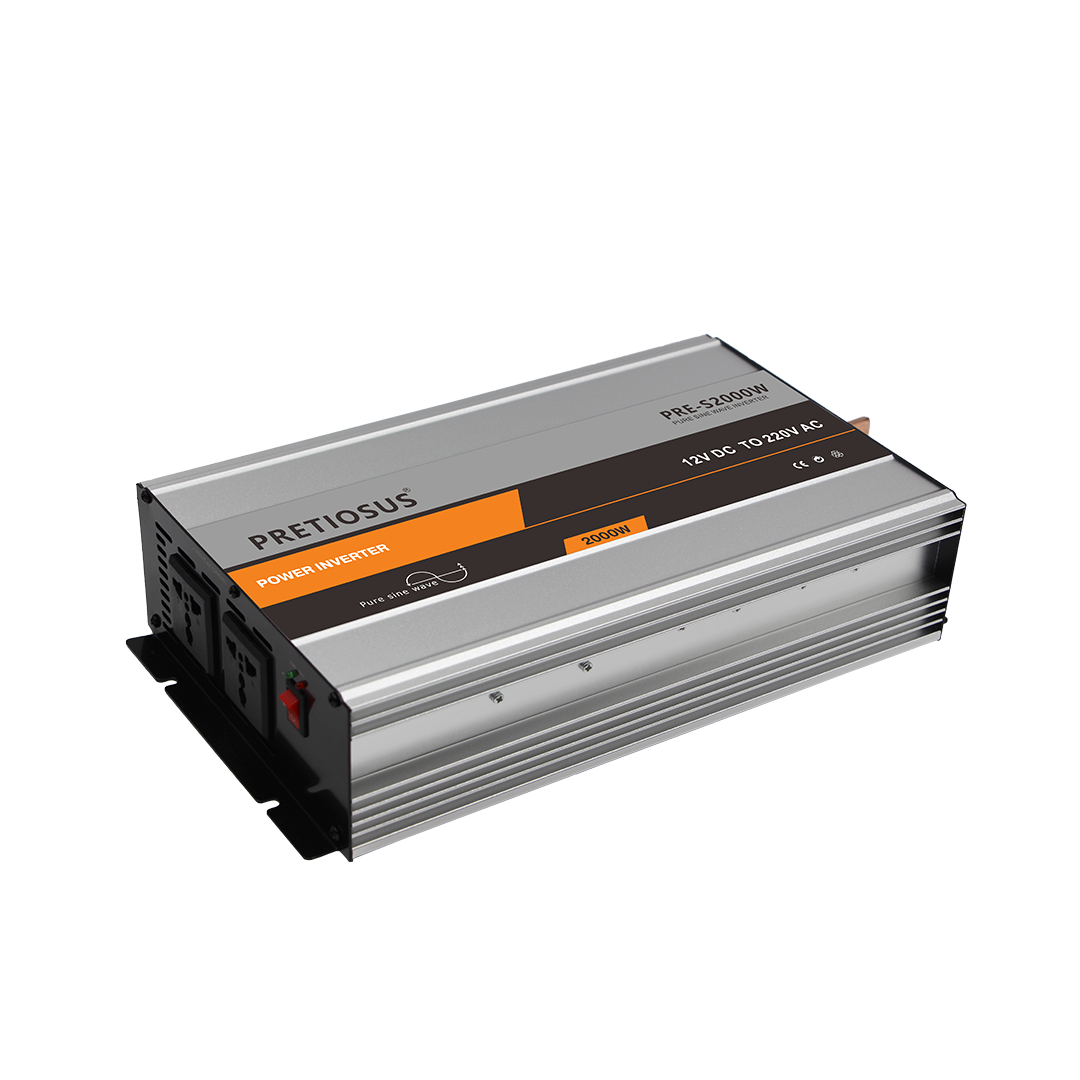

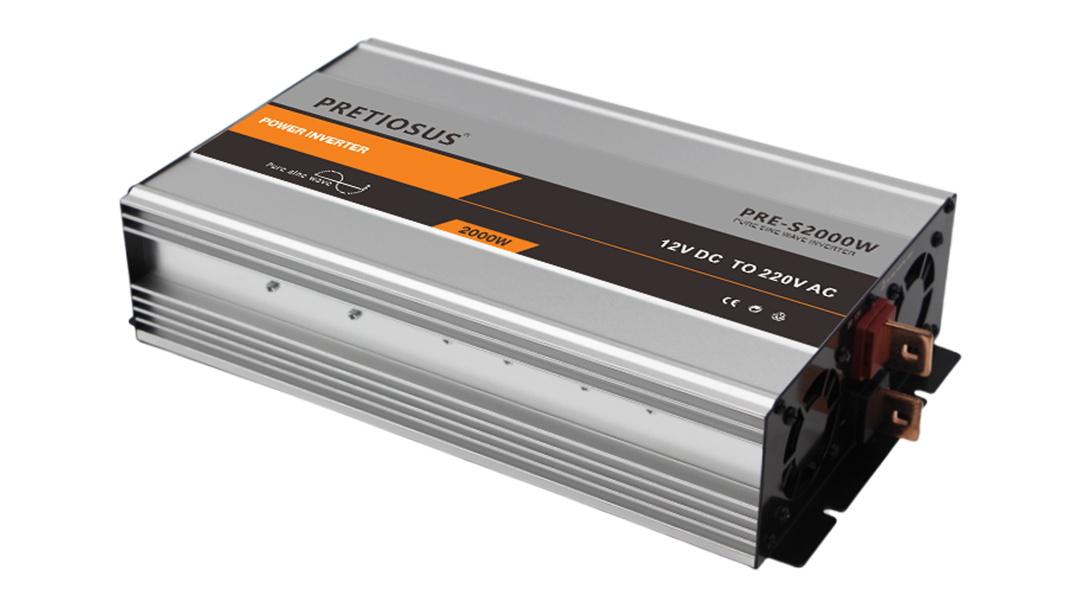

PRE-S2000W DC12V TO DC220V 50Hz
Detailed Product Parameters
|
Model |
PRE-S2000W |
|||
| Place of Origin | Zhejiang, China | |||
|
Rated power |
2000W |
|||
|
Peak power |
4000W |
|||
|
Input voltage(Range) |
DC12/24/48/60/72V |
|||
|
Output voltage(Single) |
AC110/120/220/230V±5% |
|||
|
Charger |
without |
|||
|
UPS |
without |
|||
|
Output frequency |
50Hz or 60Hz±2 |
|||
|
Output waveform |
Pure Sine Wave |
|||
|

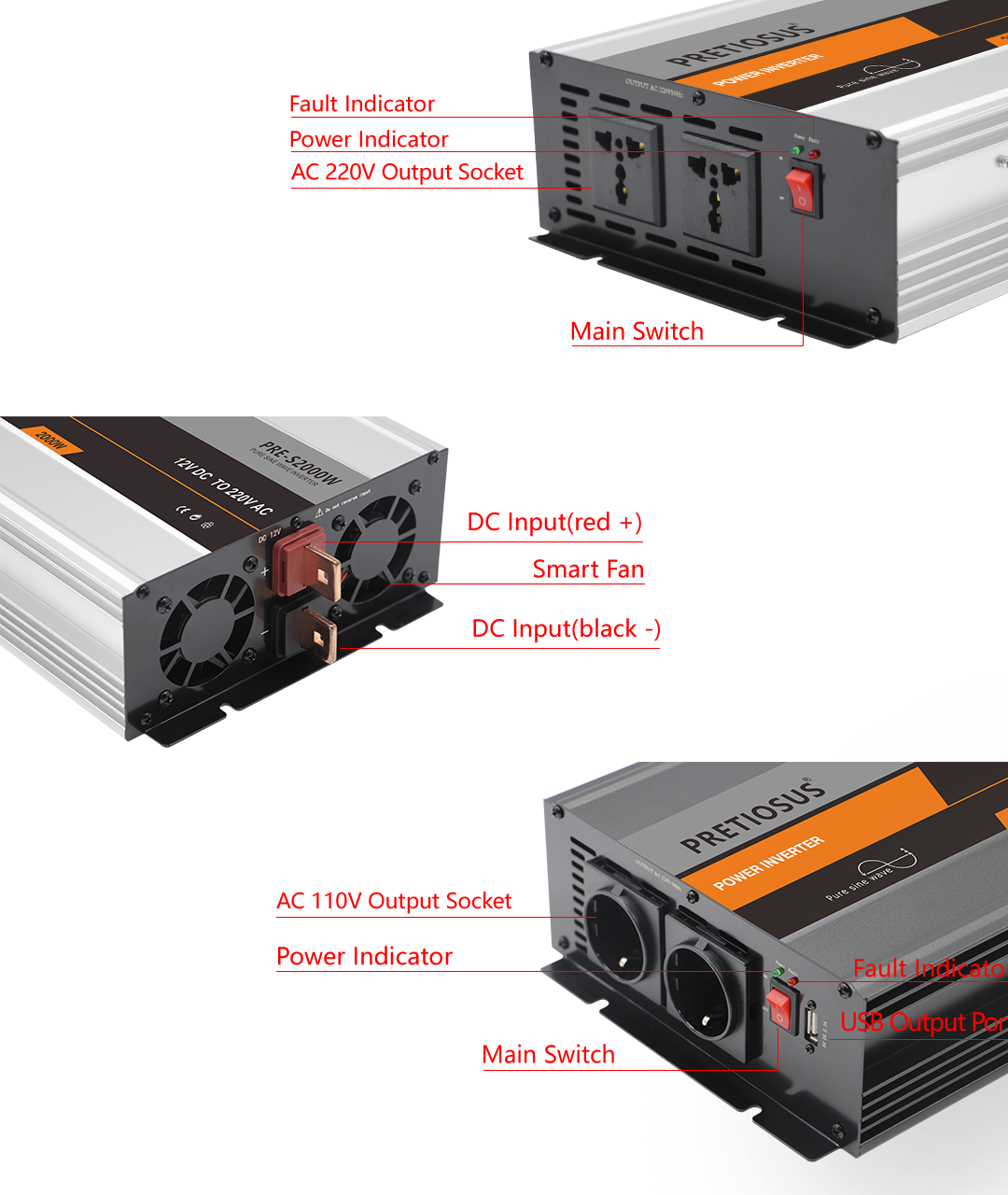

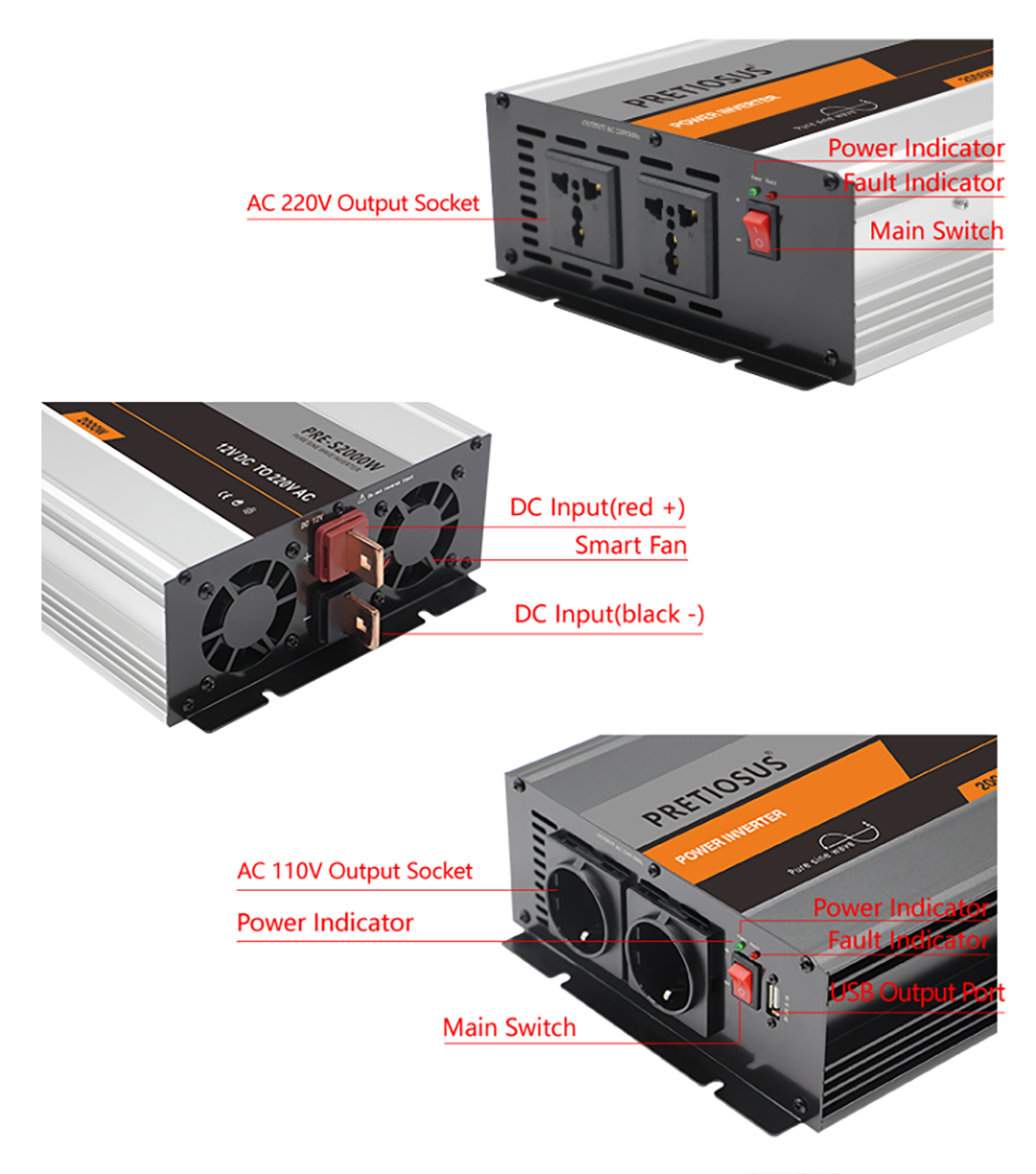

Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland/France/Germany/CFCI |
|||
|
USB port |
5V DC 2.1A |
|||
|
Max.output efficiency |
≥88% |
|||
|

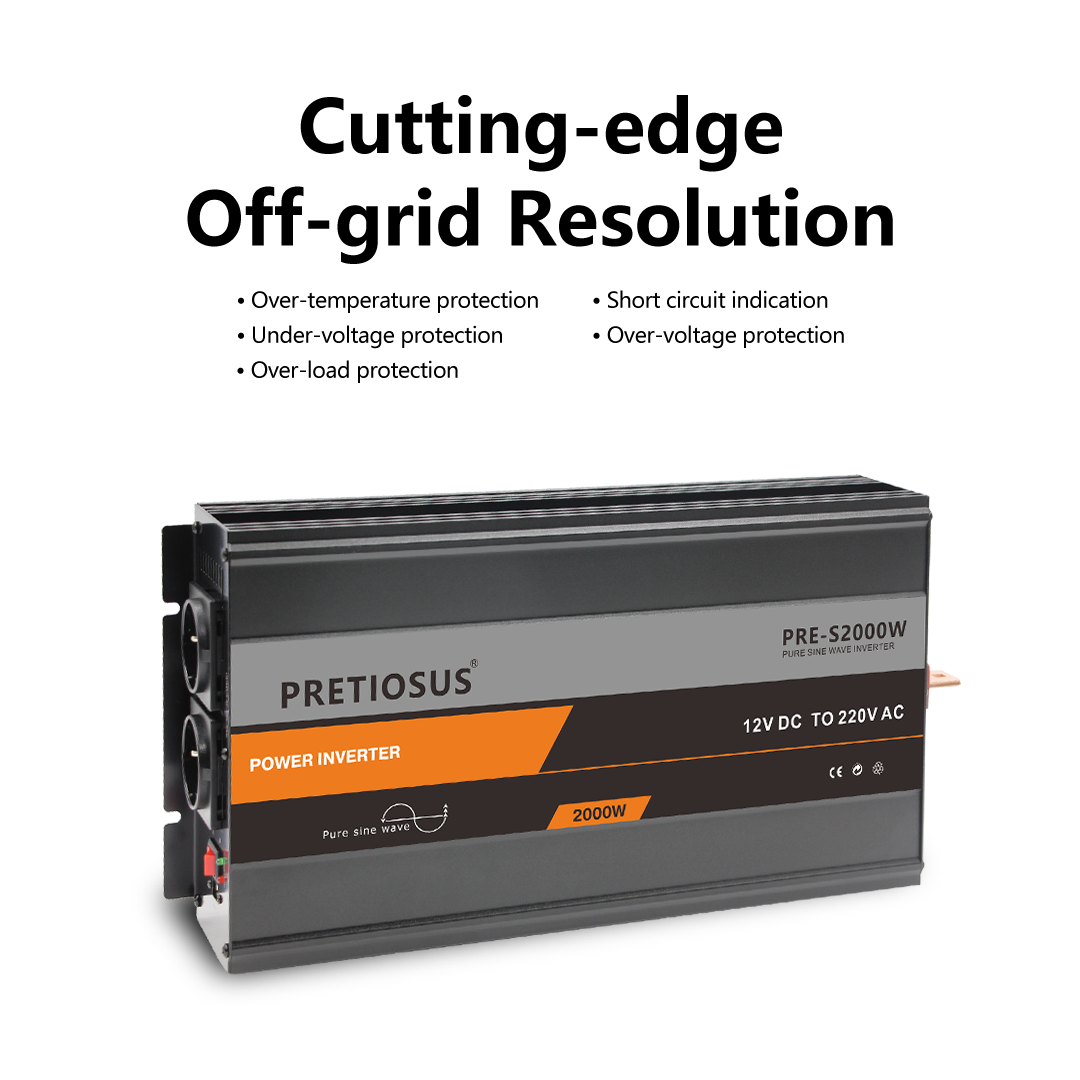

Low voltage protection |
Pre-alarm(alarm off after 1sound),LED Red light on,voltage contiously reduce and shutdown |
|||
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
|||
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|||
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
|||
|
Short circuit protection |
Perfect protection and no damage the circuit |
|||
|
Input reverse polarity protection |
Fuse burn-out |
|||
|
Working temperature |
-20℃~60℃ |
|||
| Size | 350X216X175MM | |||
|
Cooling method |
Intelligent air cooling |
|||
|

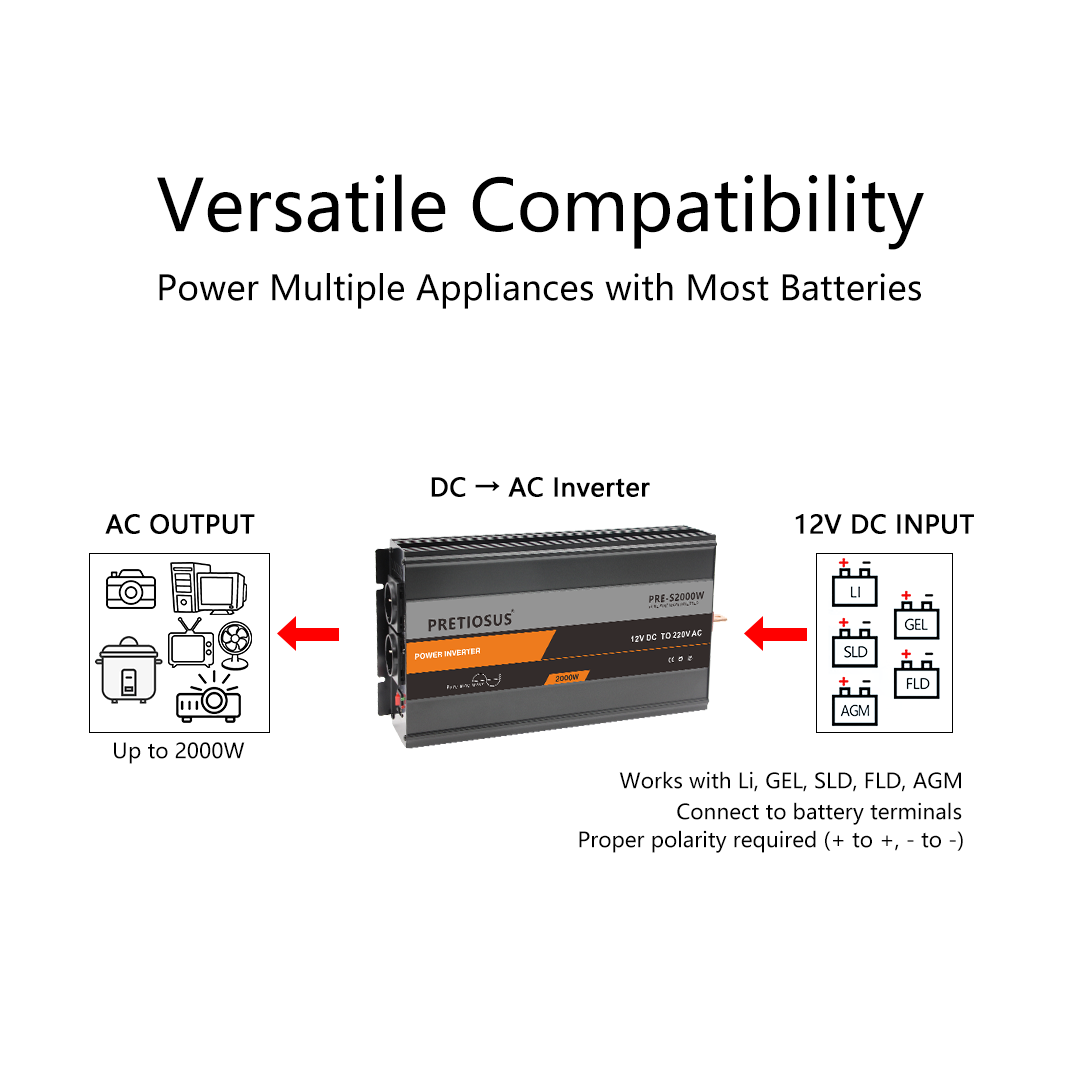

Application |
used in car or home..etc. |
|||
