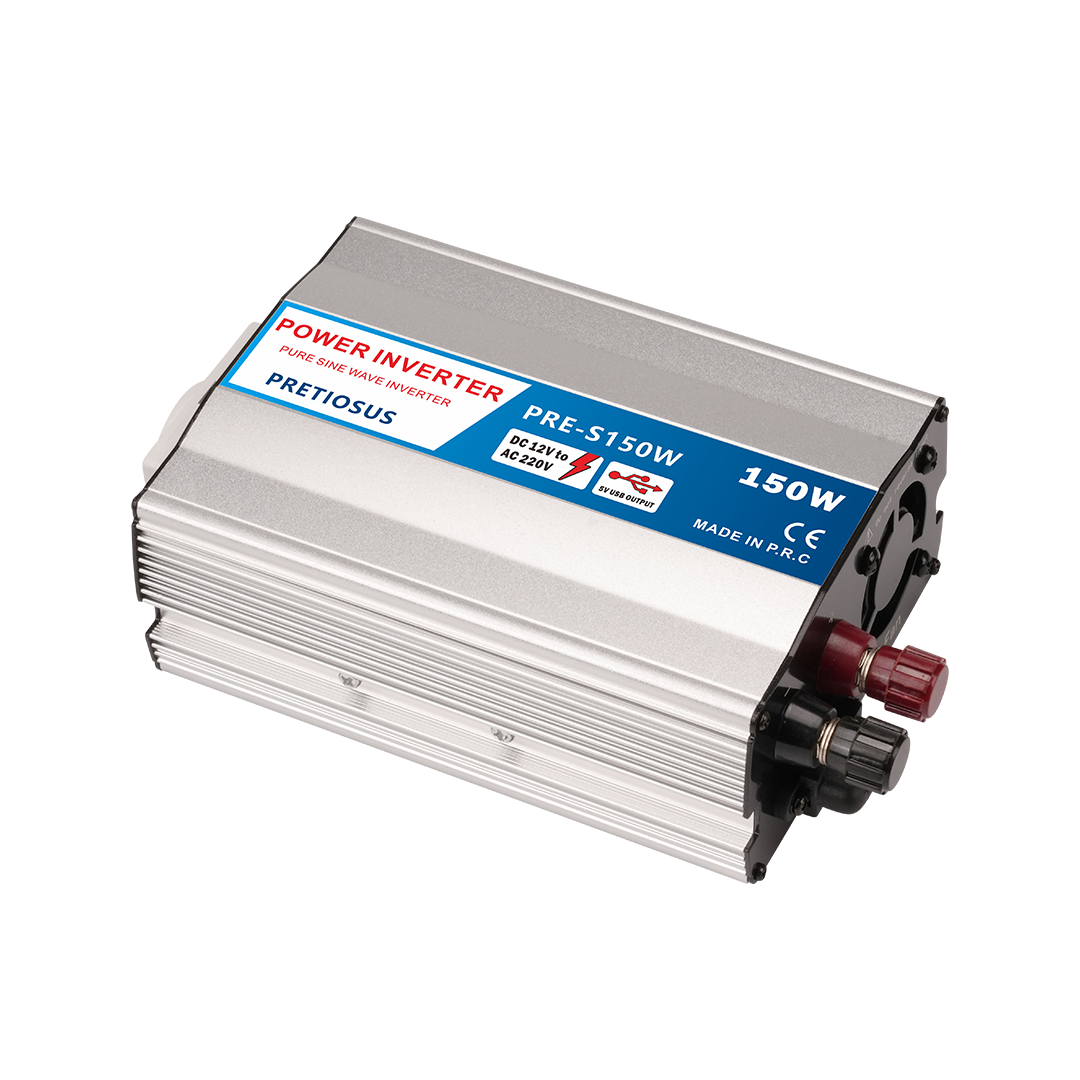

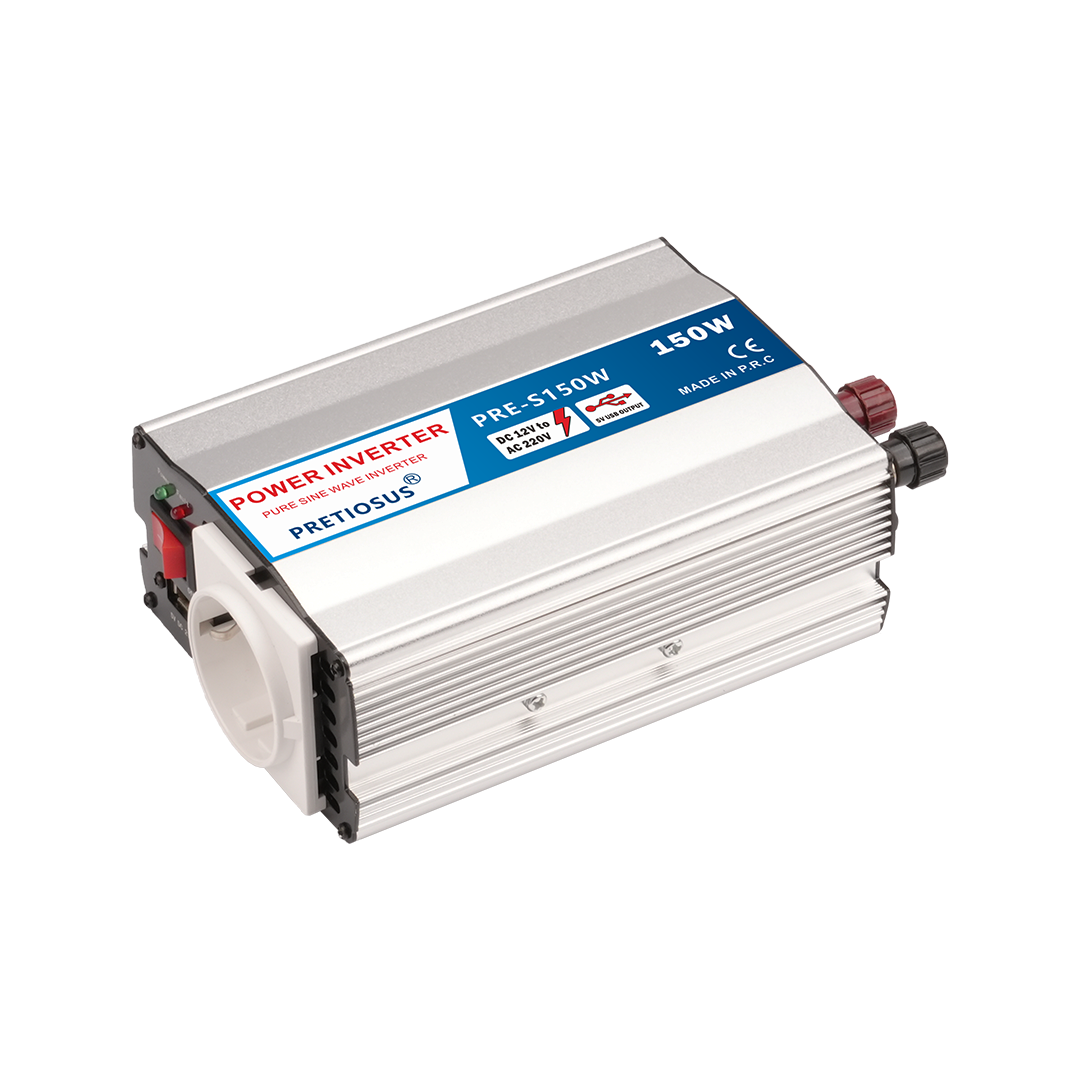

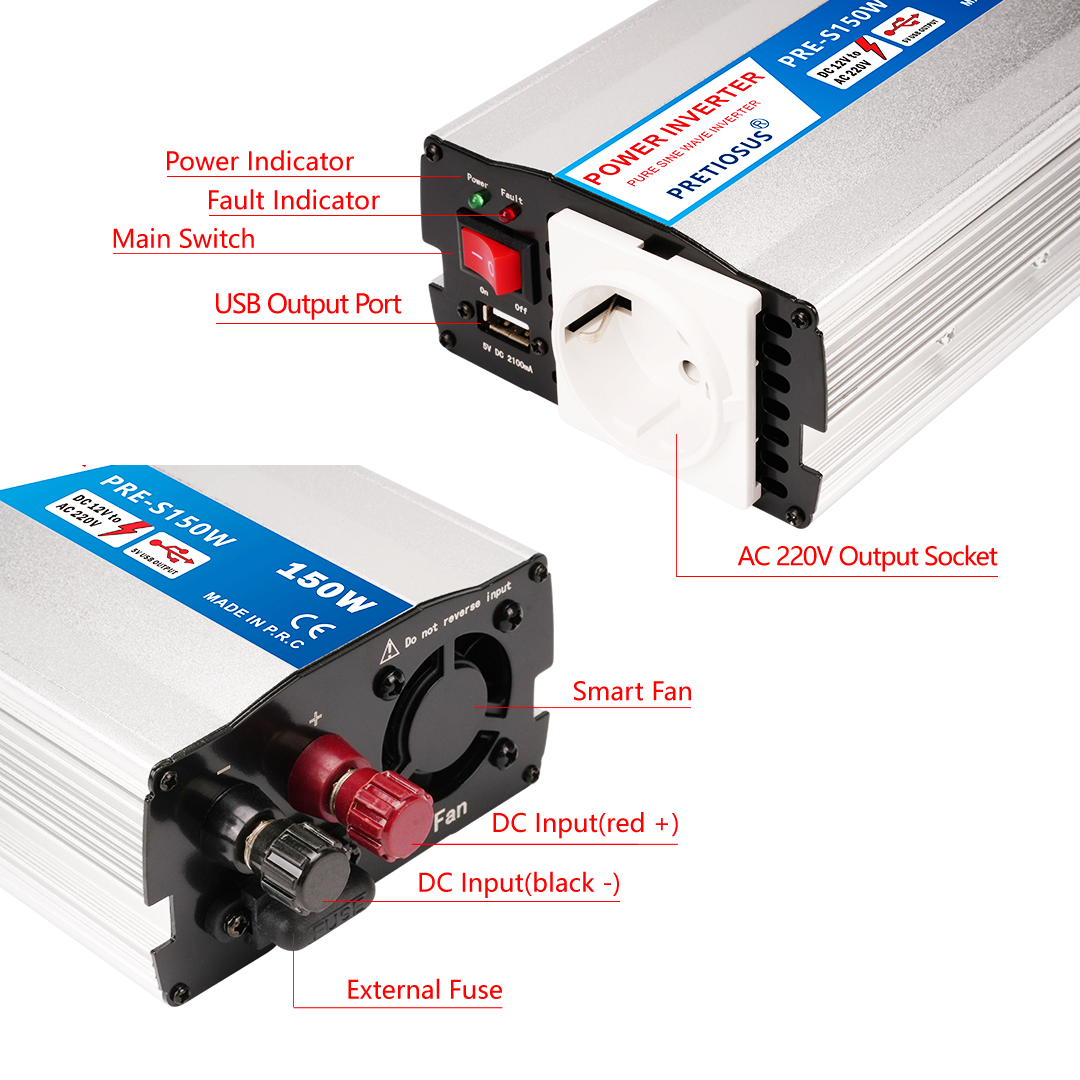

PRE-S150W DC12V TO AC220V
Detailed Product Parameters
|
Model |
PRE-S150W |
| Place of Origin | Zhejiang, China |
|
Rated power |
150W |
|
Peak power |
300W |
|
Input voltage(Range) |
DC24/48/60/72V |
|
Output voltage(Single) |
AC110/120/220/230V ±5% |
|
Charger |
without |
|
UPS |
without |
|
Output frequency |
50Hz or 60Hz ±2 |
|
Output waveform |
Pure Sine Wave |
|

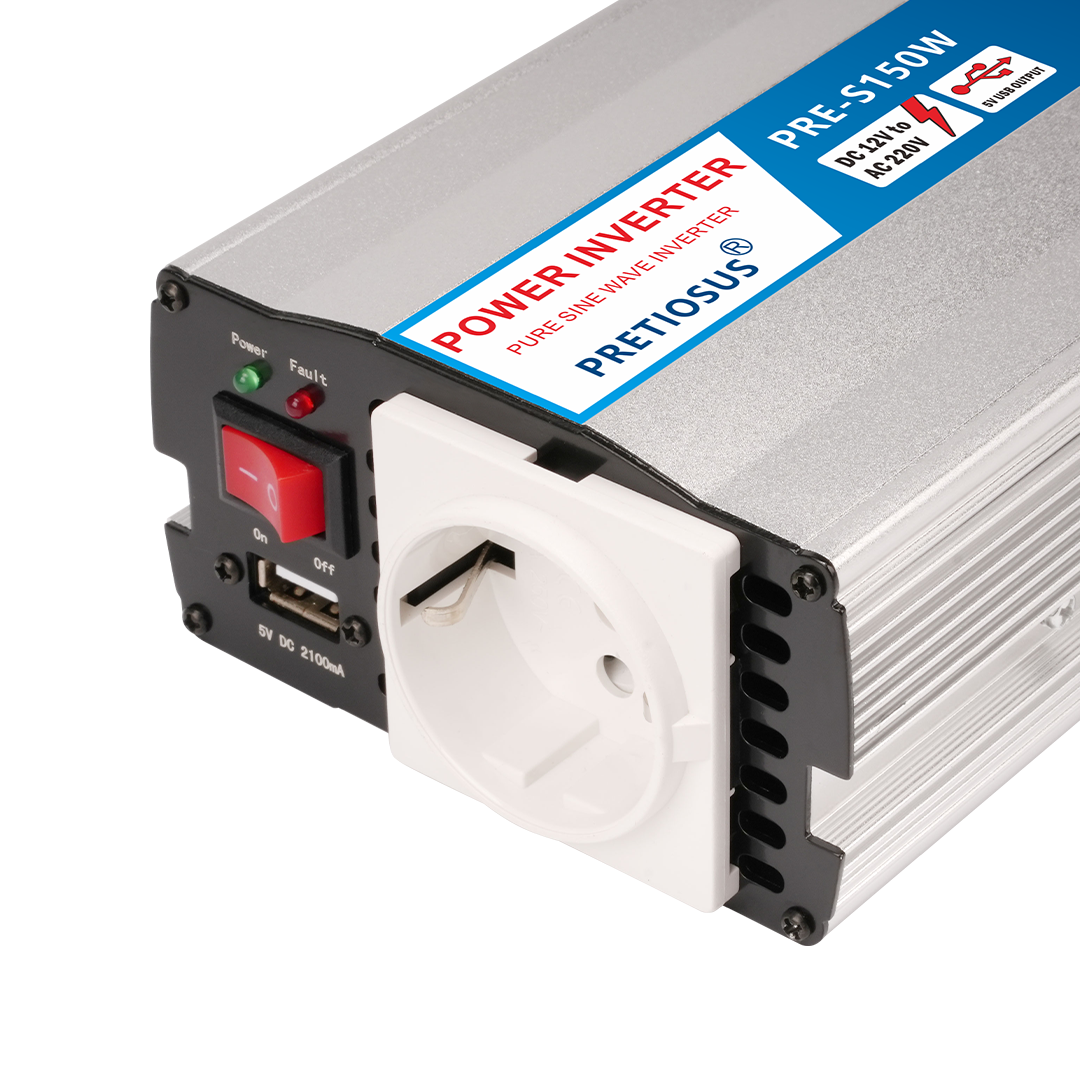

Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland .. |
|
USB port |
5V DC 2.1A |
|
Max.output efficiency |
≥93% |
|

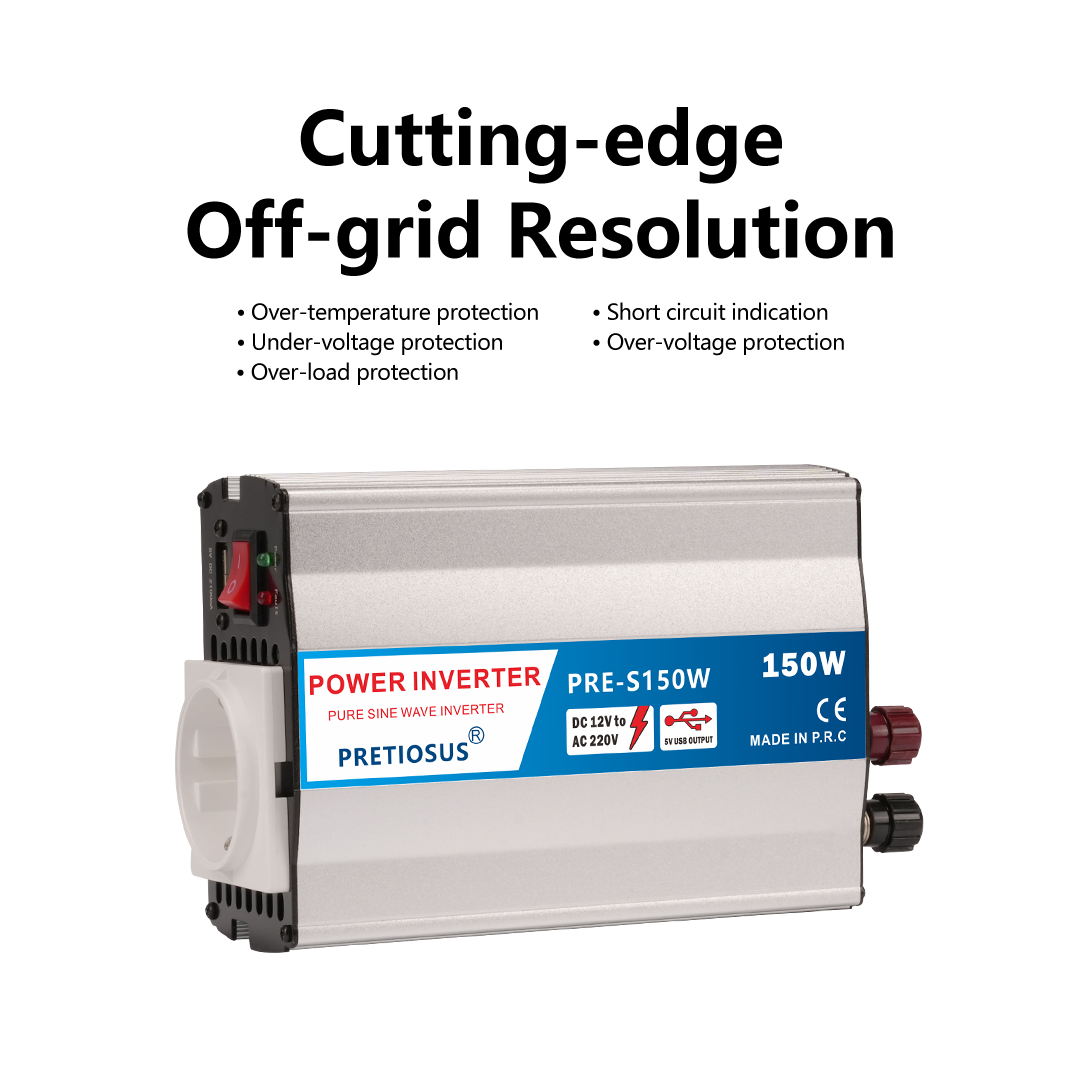

Low voltage protection |
Pre-alarm(alarm off after 1sound),LED Red light on,voltage contiously reduce and shutdown |
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
|
Short circuit protection |
Perfect protection and no damage the circuit |
|

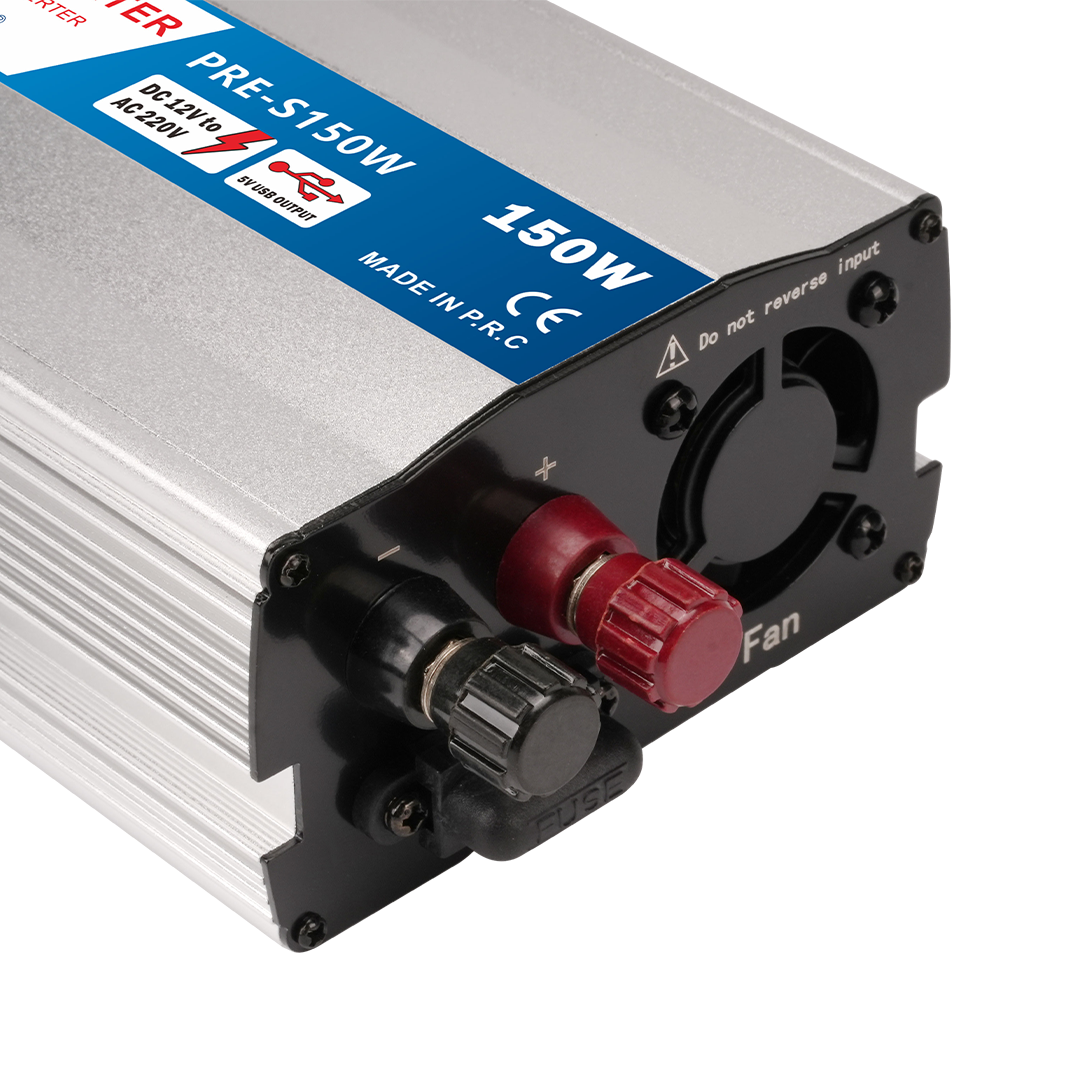

Input reverse polarity protection |
Fuse burn-out |
|
Working temperature |
-20℃~60℃ |

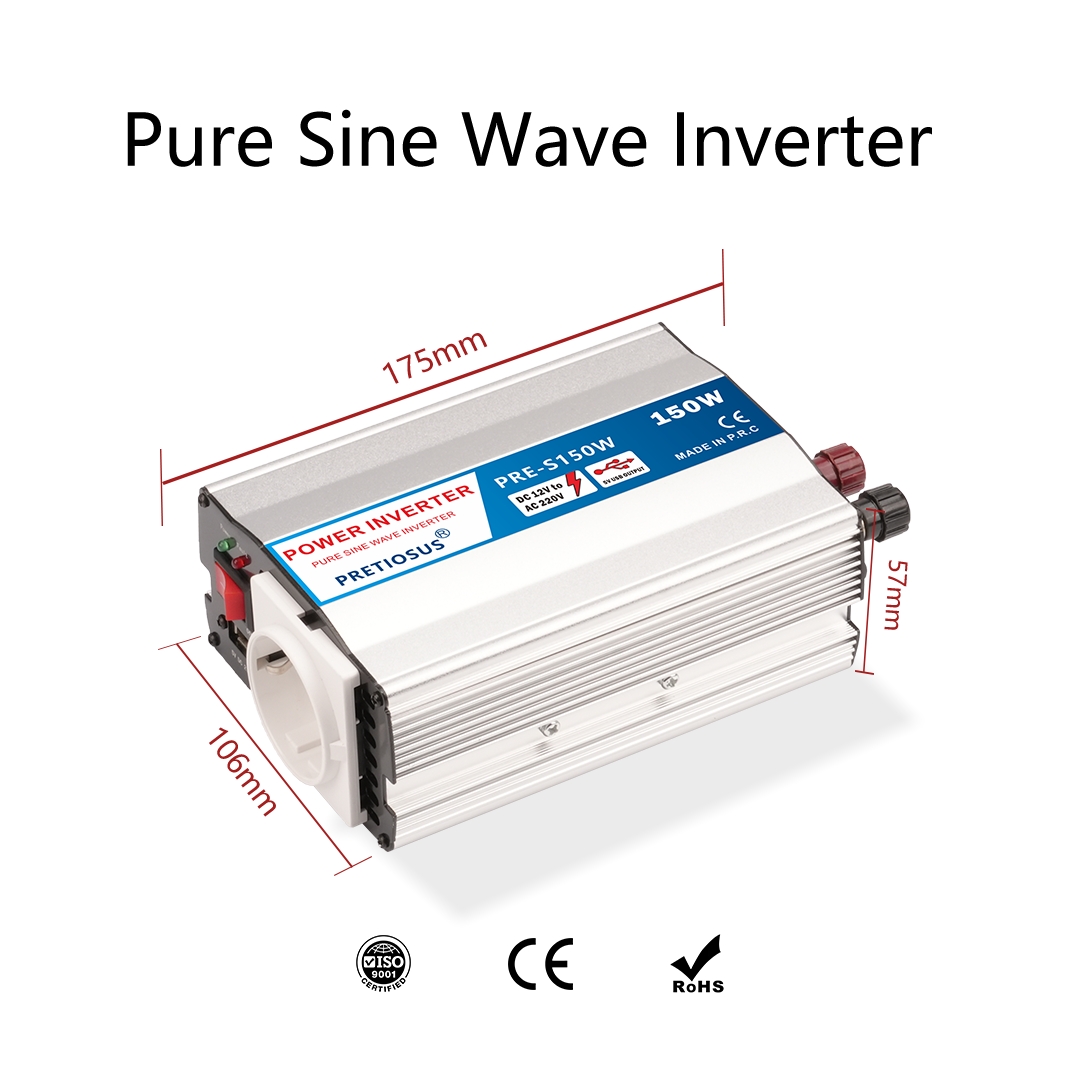

| Size | 17.5X10.6X5.7CM |
| Weight | 0.5KG |
|
Cooling method |
Intelligent air cooling |
|
Application |
used in car or home..etc. |
