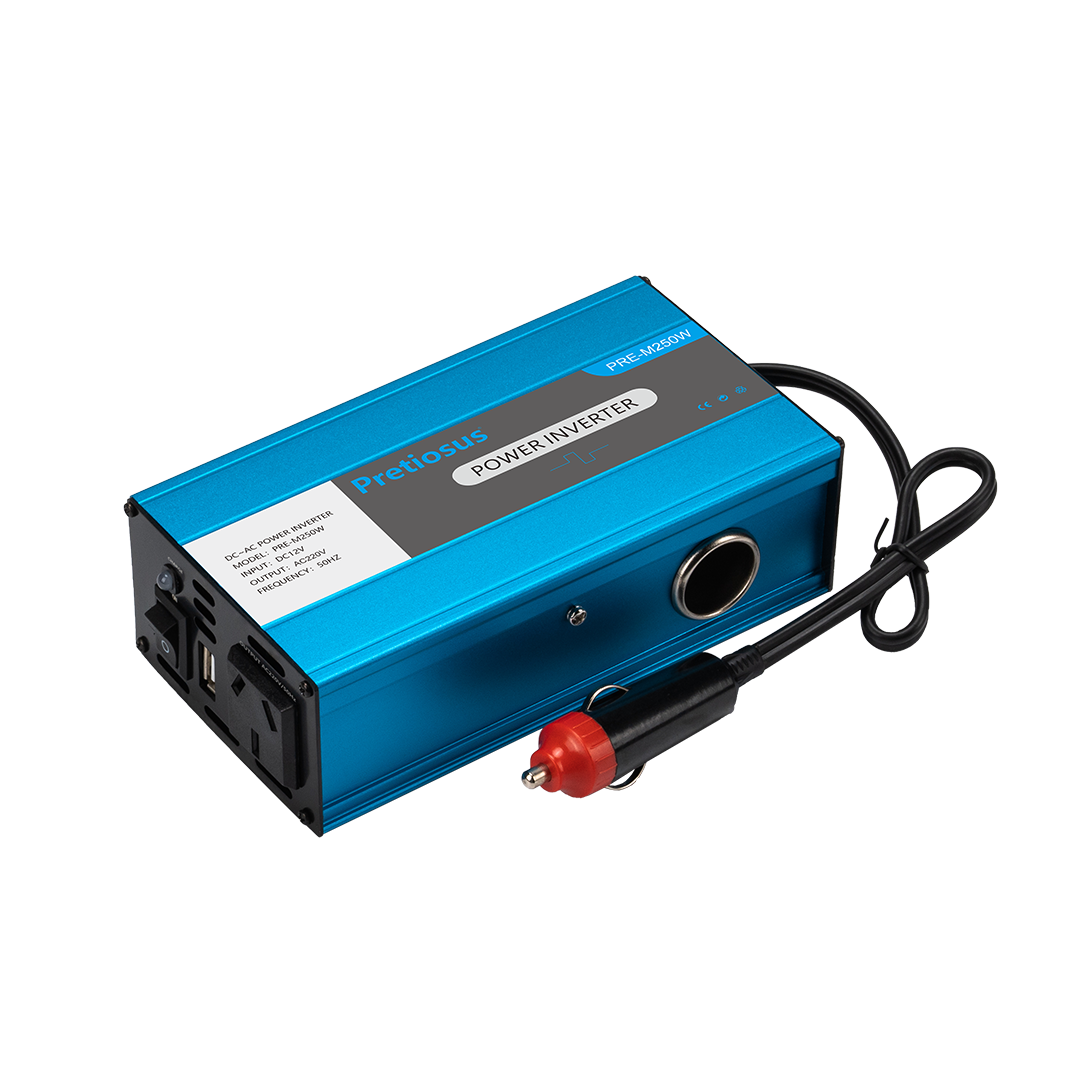

PRE-M250W DC12V TO AC220V 50Hz
Detailed Product Parameters
|
Model |
PRE-M250W |
| Place of Origin | Zhejiang,China |
|
Rated power |
250W |
|
Peak power |
500W |
|
Input voltage(Range) |
DC12/24/48/60/72V |
|
Output voltage(Single) |
AC110/120/220/230V ±5% |
|
Charger |
without |
|
UPS |
without |
|
Output frequency |
50Hz or 60Hz ±2 |
|
Output waveform |
Modified Sine Wave |
|
Standard socket |
Multi-function/USA/Australia/UK/South Africa/Brazil/Italy/Japan/Lsrael/Switzerland .. |
|
USB port |
1 |
|
Max.output efficiency |
≥88%-93% |
|
Low voltage protection |
Pre-alarm(alarm off after 1sound),LED Red light on,voltage contiously reduce and shutdown |
|
Over voltage protection |
Pre-alarm(alarm off after 2 sounds),LED Red light on,shutdown |
|
0verload protection |
Continuous alarm,LED Red light on,shutdown |
|
0ver temperature protection |
Pre-alarm(alarm offafter 3sounds),tempurature continously rise,LED Red light on,shutdown |
|
Short circuit protection |
Perfect protection and no damage the circuit |
|
Input reverse polarity protection |
Fuse burn-out |
|
Working temperature |
-20℃~60℃ |
|
Cooling method |
Intelligent air cooling |
|
Application |
Home, Home Appliance,Used in Car or Home..etc. |
| Packaging Specification (Quantity per Carton) | 20 Units/Carton |
